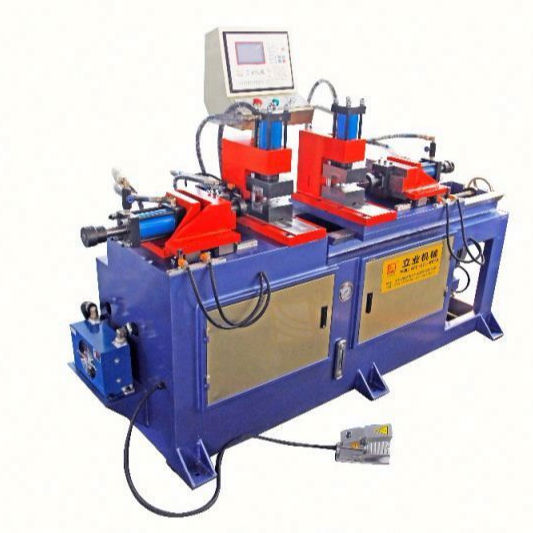

Five Station Pipe End Forming Machine Extended Stroke Oil Pipe Expanding Machine

Product Description:

A double heads tube end forming machine is a type of machine used in the manufacturing industry to shape and modify the ends of metal tubes.As the name suggests, this machine has two forming heads that are used simultaneously to shape both ends of the tube.

The pipe end forming machine can perform a variety of end-forming processes, including expanding, reducing, flaring, beading, and threading.These processes can be used to create different types of joints, connections, or shapes required for specific applications.

The tube is clamped into the machine, and the two forming heads move towards it to shape the ends.The forming heads can be adjusted to create different shapes and sizes, depending on the specific requirements of the job.

A double heads tube end forming machine is a versatile and efficient tool for shaping and modifying the ends of metal tubes, and is commonly used in industries such as automotive, aerospace, and HVAC.

Features:

• Product Name: Pipe End Forming Machine
• Warranty: 1 Year
• Power(W): 3KW
• Power Source: Electric
• Voltage: 220V/380V
• Material: Carbon Steel
• Tube Forming Equipment
• Pipe Fabrication Machine
• Pipe Fabrication Machine

Technical Parameters:

SG Pipe End Forming Machine

The SG40NC (Dual Head Type) is a powerful pipe end forming machine that is highly efficient. It features a 380V ± 10% 50HZ three-phase power input that is customizable. The control circuit is a low-voltage 24V, and the maximum forming pipe diameter and thickness (for iron pipe) is Φ40X2mm. It features a maximum working process of 110mm that can be modified due to customer requirements. The machine head spacing and the machine's weight and measurements will also depend on the customer's needs. The motor power is 4KW and the hydraulic pressure is 12Mpa, and it is outfitted with an oil pump of 23L.

Applications:

The Pipe End Forming Machine from LYM is a perfect choice for pipe fabrication and manufacturing. This equipment is designed for pipe end forming and is CE&ISO&BV certified. With the minimum order of 1 set, the price of this machine is $8,000.00 - $15,000.00/sets. The total weight of this equipment is 400kg and the dimension is 1800*1000*1400mm. This machine works on 220V/380V voltage and 0.6-0.8Mpa working pressure. The package of this machine includes a wooden case and it can be customized according to the requirements. The delivery time of this equipment is 15-20 work days and the payment terms are T/T, L/C, D/A, D/P, Western Union and MoneyGram. The supply ability of this machine is 100 Set/Sets per Month. This Pipe End Forming Equipment is perfect for Pipe Fabrication and Pipe Manufacturing.

Customization:

Support and Services:

Pipe End Forming Machine Technical Support and Service

We provide comprehensive technical support and service for our Pipe End Forming Machine. Our team of technical experts is available to answer any questions you may have about the use and maintenance of our products. We provide online support, as well as telephone and email support and can help you troubleshoot any issues you may be having. We also offer on-site repair and maintenance services, as well as install and upgrade services. Our team is dedicated to providing you with the best customer service possible, and we are committed to helping you keep your Pipe End Forming Machine running smoothly.

Packing and Shipping:

Packaging and Shipping for Pipe End Forming Machine

The Pipe End Forming Machine is carefully packaged in a strong wooden crate and sealed with shrink wrapping. All necessary precautions are taken to ensure that the machine is not damaged during transit. The machine is shipped with a full complement of accessories to ensure it is ready to use on arrival.

We use a reliable shipping company to deliver the machine to the customer. The customer will be notified of the estimated delivery date before the machine is shipped.

FAQ:

Q: What is the brand name of the Pipe End Forming Machine?

A: The brand name of the Pipe End Forming Machine is LYM.

Q: Where is the Pipe End Forming Machine from?

A: The Pipe End Forming Machine is from China.

Q: What certifications does the Pipe End Forming Machine have?

A: The Pipe End Forming Machine has CE&ISO&BV certifications.

Q: What is the minimum order quantity for the Pipe End Forming Machine?

A: The minimum order quantity for the Pipe End Forming Machine is 1 set.

Q: How much does the Pipe End Forming Machine cost?

A: The price for the Pipe End Forming Machine ranges from $8,000.00 to $15,000.00/sets.
