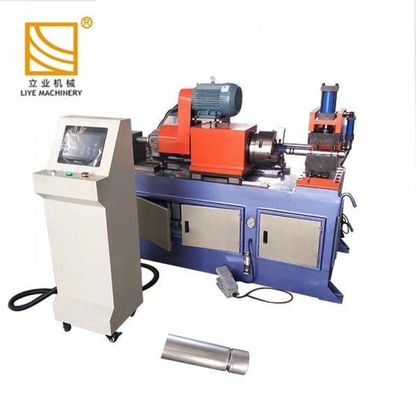

Automatic Pipe End Forming Machine Dual Head Type Tube Forming Equipment

400kg Capacity Tube Forming Equipment for Pipe End Forming Machine

A double heads tube end forming machine is a type of machine used in the manufacturing industry to shape and modify the ends of metal tubes.

The pipe end forming machine can perform a variety of end-forming processes, such as expanding, reducing, flaring, beading, and threading. These processes can be used to create different types of joints, connections, or shapes, depending on the specific application.

The tube is clamped into the machine, and the two forming heads move towards it to shape the ends. The forming heads can be adjusted to create different shapes and sizes, depending on the specific requirements of the job.

A double heads tube end forming machine is a versatile and efficient tool for shaping and modifying the ends of metal tubes, and is commonly used in industries such as automotive, aerospace, and HVAC.

Features:

• Product Name: Pipe End Forming Machine
• After-sales Service Provided: Engineers Available To Service Machinery Overseas
• Dimension(L*W*H): 1800*1000*1400mm
• Power Source: Electric
• Voltage: 220V/380V
• Power(W): 3KW
• Pipe Manufacturing Equipment
• Pipe Shaping Machine
• Pipe End Manufacturing Machine

Technical Parameters:

The SG Pipe End Forming Machine has a model of SG40NC dual head type. It is powered by a three-phase power of 380V±10% 50HZ, and the control circuit is 24V. It is designed to work on iron pipes of 40mm- diameter and 2mm-thickness, with a maximum working process of 110mm, though this can be customized. The machine head spacing is at the customer's requirement, and it is powered by a 4kw motor, supported by a 23L oil pump and a pressure of up to 12Mpa. As for the measurements of the machine, this is also customizable for the customer's needs.

The weight of the machine will depend on the customization of the customer, as this can vary depending on the requirements. We will provide drawings and technical solutions for the customer to choose in order to meet their needs. With a large range of sizes and types available, the SG Pipe End Forming Machine is a durable and reliable option to meet your end forming needs.

Applications:

The LYM Pipe End Forming Machine is a specialized pipe fabrication machine that is designed to efficiently and accurately produce pipe end components for a variety of industries. It is designed with the highest quality materials and components to ensure long-term durability and reliability. It features a PLC control system and is certified by CE, ISO and BV compliance. This machine is capable of producing pipe end components with a working pressure of up to 0.8Mpa. It comes with a minimum order quantity of 1 set and a dimension of 1800*1000*1400mm.

This pipe end manufacturing machine is manufactured in China and comes with an excellent after-sales service. The price range of this pipe end forming equipment is from $8,000.00 to $15,000.00 and it is packaged in wooden cases according to customers' requirements. Delivery time is within 15-20 work days and payment can be done via T/T, L/C, D/A, D/P, Western Union, MoneyGram. It has a supply ability of 100 sets per month.

This LYM Pipe End Forming Machine is ideal for pipe end forming applications and is the perfect solution for any pipe fabrication needs. It is designed to provide the highest quality of pipe end components and is sure to exceed your expectations.

Customization:

Support and Services:

Our Pipe End Forming Machine comes with comprehensive technical support and services. We offer free training for customers to learn how to operate and maintain the machine. In addition, our after-sales service team provides timely response to any questions or issues you may have during the use of the machine. We also provide genuine spare parts and accessories to ensure the machine remains in optimal condition. Furthermore, our professional engineering team can provide custom solutions for any technical problems you may encounter.

Packing and Shipping:

Packaging and Shipping of Pipe End Forming Machine:

• The Pipe End Forming Machine will be securely packaged in a heavy duty wooden crate.
• The crate will be labeled with the weight of the machine and “Fragile” signs.
• The crate will also be sealed for extra protection.
• The machine will be shipped via reliable freight carrier.

FAQ:
