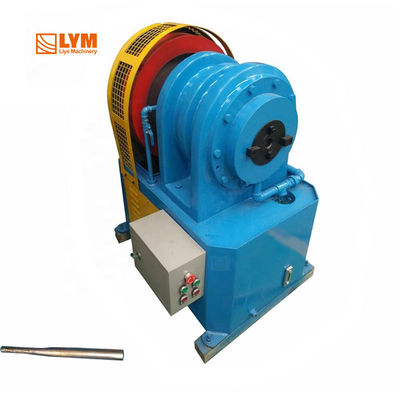

40mm Pipe End Forming Machine Dual Head Type

Product Description:

A double heads tube end forming machine is a type of machine used in the manufacturing industry to shape and modify the ends of metal tubes. As the name suggests, this machine has two forming heads that are used simultaneously to shape both ends of the tube.

The pipe end forming machine can perform a variety of end-forming processes, including expanding, reducing, flaring, beading, and threading. These processes can be used to create different types of joints, connections, or shapes required for specific applications.

The tube is clamped into the machine, and the two forming heads move towards it to shape the ends. The forming heads can be adjusted to create different shapes and sizes, depending on the specific requirements of the job.

A double heads tube end forming machine is a versatile and efficient tool for shaping and modifying the ends of metal tubes, and is commonly used in industries such as automotive, aerospace, and HVAC.

Features:

• Product Name: Pipe End Forming Machine
• Material: Carbon Steel
• Power Source: Electric
• Weight: 400kg
• Control System: PLC
• Processing Speed: 20-30pcs/min
• Tube Forming Equipment: Yes
• Pipe Fabrication Machine: Yes
• Tube Forming Equipment: Yes

Technical Parameters:

The SG Pipe end forming machine has a specification/model of SG40NC (Dual head type). It runs on an input voltage of 380V±10%, 50HZ Three-phase power, with the control circuit being 24V. Its maximum forming pipe diameter and thickness for iron pipes is Φ40*2mm. The maximum working process is 110mm and is customizable. The machine head spacing, measurement size of machine, and weight of machine are all customizable as per the customer's requirement. Lastly, the oil pump and motor power are 23L and 4kw respectively, and the hydraulic pressure is 12Mpa.

Applications:

The Pipe End Forming Machine is an ideal solution for efficient pipe end manufacturing and pipe fabrication. This machine, provided by LYM, is suitable for different pipe end forming applications and is certified by CE&ISO&BV, providing high quality and safety. The Pipe End Forming Machine is available in a minimum order quantity of 1 set and is priced between $8,000.00 - $15,000.00/sets. The machine is packed securely in a wooden case and the delivery time is 15-20 work days. Payment terms include T/T, L/C, D/A, D/P, Western Union, MoneyGram. The Pipe End Forming Machine has a supply ability of 100 sets per month. It is equipped with a PLC control system and has a working pressure of 0.6-0.8Mpa. The machine weighs 400kg and is an ideal solution for efficient pipe end manufacturing and pipe fabrication.

Customization:

Support and Services:

We offer technical support and services for Pipe End Forming Machine. Our technical support team consists of knowledgeable professionals who are available to answer questions and provide guidance on how to use the product. We also offer a variety of services to help with the installation and maintenance of your machine. Our services include installation, training, and repairs. We also provide preventative maintenance and troubleshooting services for our customers.

Packing and Shipping:

The Pipe End Forming Machine will be packaged and shipped to the customer in a secure and protected manner. All components of the machine will be securely wrapped and protected using high-quality packaging materials. The machine will be placed on a pallet and strapped down for safe transportation. The pallet will be secured to a wooden crate for additional protection. Once packaged, the machine will be shipped via a reliable carrier to ensure safe and timely delivery.

FAQ:

Q: What is the Brand name of the Pipe End Forming Machine?

A: The Brand name of the Pipe End Forming Machine is LYM.

Q: Where is the Place of Origin of the Pipe End Forming Machine?

A: The Place of Origin of the Pipe End Forming Machine is China.

Q: What are the Certification of the Pipe End Forming Machine?

A: The Certification of the Pipe End Forming Machine is CE&ISO&BV.

Q: What is the Minimum Order Quantity of the Pipe End Forming Machine?

A: The Minimum Order Quantity of the Pipe End Forming Machine is 1 set.

Q: How much does the Pipe End Forming Machine cost?

A: The Pipe End Forming Machine costs $8,000.00 - $15,000.00/sets.
