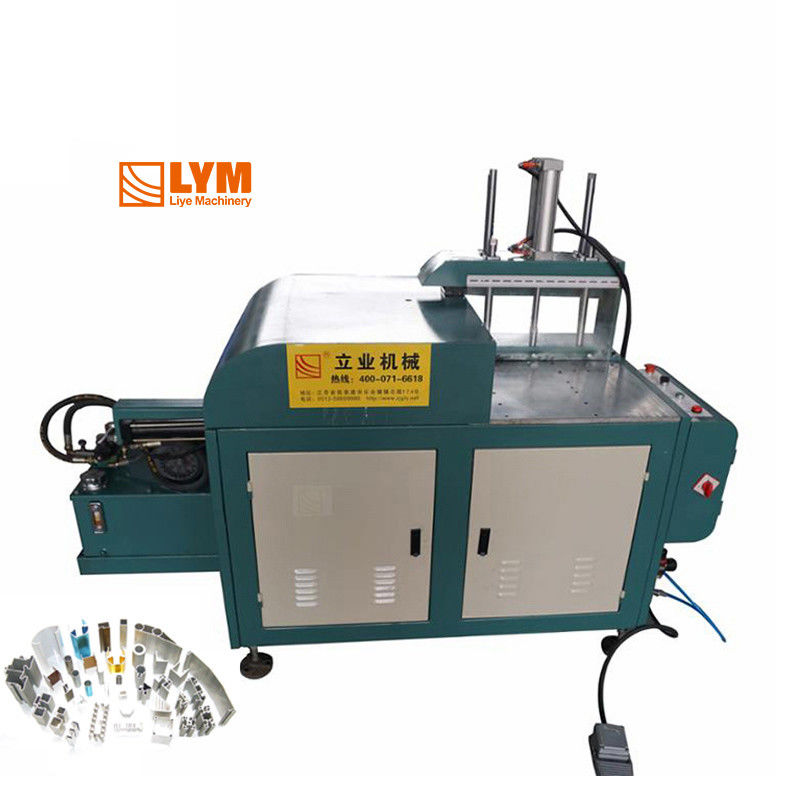

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine
45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine

Large Image :  45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LYM-Liye Machinery
Certification: CE,ISO,BV,TUV,SGS
Model Number: L505
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $7,000.00 - $15,000.00/sets
Packaging Details: Plywood box for L505 Semi-automatic aluminum cutting machine (Crosscutting Type).It depends on requirement.
Supply Ability: 100 Set/Sets per Month

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine

Description
Condition: New Type: Aluminum Cutting Machine
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure Vessel, Pump Voltage: 380V
Rated Power: 4KW Dimension(L*W*H): 1350*1000*1480MM
Year: New Warranty: 1 Year
Key Selling Points: Easy To Operate Applicable Industries: Manufacturing Plant, Metal Pipe Machining Enterprise
Showroom Location: None Weight (KG): 550 KG
Product Name: L505 Semi-automatic Aluminum Cutting Machine (Crosscutting Type) Sawing And Cutting Angle: 45°& 90°
Maximum Sawing Width: 500mm Maximum Sawing Height: 160mm
Spindle Speed: 2800-3300RP Required Pressure: 0.6-0.8MPa
Working Table Size: 580*830mm Install The Largest Saw Blade: 505mm
Color: Blue Or Support Customized OEM & ODM: Available
Port: Shanghai
Highlight:

500mm 45 degree aluminum cutting machine

,

160mm 45 degree aluminum cutting machine

,

cnc aluminium profile cutting machine

Product Description

Automatic aluminum cutting machine



Automatic aluminum cutting machine, suitable for small pieces of aluminum, cutting large amount, precision requirements of cutting work, small pieces of aluminum can be cut into a beam, one can cut off more than one, high efficiency, the machine has feeding, clamping, positioning and other functions, controlled by PLC to achieve automatic cutting work, using tungsten steel circular saw blade cutting, saw blade speed per minute 3200 rotation, The cutting material section is smooth and without burr. Suitable for all kinds of aluminum products manufacturing cutting precision requirements. Such as heat sink aluminum,U disk MP3 aluminum



Automatic CNC aluminum cutting machine is an advanced CNC cutting equipment, it can automatically complete aluminum, copper and other metal materials cutting. The following are the functions, characteristics, advantages and applications of automatic CNC aluminum cutting machine:



Function:



1. Can achieve a variety of cutting methods, such as straight cutting, arc cutting, etc.;

2. Can automatically identify the contour of machined parts and cut according to the graphic program;

3. High precision cutting can be achieved through computer control;

4. Can carry out a large number of continuous cutting operations;

5. High cutting precision, smooth and flat cutting surface.

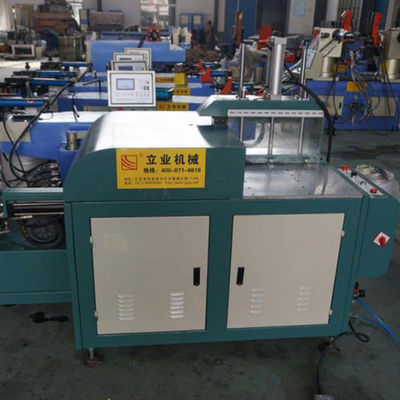

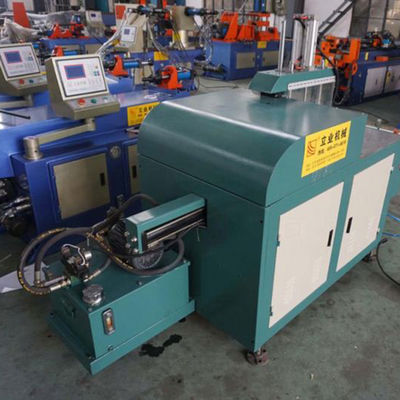

L505 China supplier alloy saw blade aluminum cutting-off machine



45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 0



45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 1

 Features
1.Installation of hidden alloy saw blade, high safety performance.
2.The automatic injection section without edges, on both sides, the saw blade is more durable.
Automatic control pressure, cutting speed can be adjusted.
3.Fast pneumatic clamping and hydraulic feed, greatly improve the cutting stability.
4.Can be customized credle, before positioning , can be a plurality of sawing, cutting special materials.
5.Aluminum scrap concentrated recovery.
6.Suitable for all kinds of large size of the posterior wall of copper, aluminum and sheet metal cutting.





45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 2



45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 3

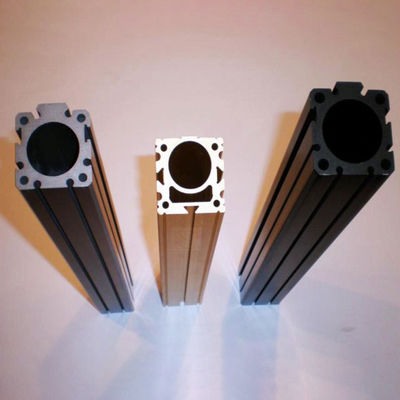

Sample:



45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 4





Specification:

Model L405HQ L505HQ
Performance Specification Specification
Sawing and cutting angle 45°& 90° 45°& 90°
Maximum sawing width(mm) 400 500
Maximum sawing height(mm) 125 160
Spindle speed 2800-3300RPM 2800-3300RPM
Install the largest saw blade Φ405 Φ505
Motor power 3KW 4KW
Required pressure 0.6-0.8MPa 0.6-0.8MPa
Working table size(mm) 530*830 580*830
Size of packing box 1350*1000*1480MM 1350*1000*1480MM
Weight of machine 400KG 550KG
Size of material rack(Optional accessories) Front 1000*390MM Back 150*390MM Front 1000*390MM Back 150*390MM









Company Information

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 5

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 645 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 7

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 8



Parts brand

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 9



PackingShipping

45 Degree Aluminum Cutting Machine Automatic CNC Copper Profile Cutting Machine 10

FAQ

Q1 What a Liye machinery main product is?

The main products include 9 series and over 100 models, i.e. pipe machining line pipe cutter pipe bender

pipe end forming machine, chamfering machine, gear grinding machine, niveting machine, arc machine

and bending press.



Q2 Why can we trust Founding mechanical technology?

1.All of our products have passed CE, TUV, ISO quality cerification

2.0ur products have been exported so far been more than 80 countries

3.This site is written by the Department of Mechanical Technology Founding how to choose the type of

 article bender http:/www zjgly.net/en/xxzn.html)



Q3 When did you set up?

We specialize in the production of pipe processing machinery has reached 16 years, starting in

2008 to developthe intemational market.



Q4 Where is your factory?

Zhangjiagang City, Jiangsu Province, from Shanghai airport only two hours



Q5 Where is your ADVANTAGE?

1. In good faith-based, professiona skills,excellent quality

2 We have been committed to the development of new products, equipment canbe customized according to

needs

3. Strict management system and perfect after-sales service
