L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application

L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application
L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application

Large Image :  L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LYM-Liye Machinery
Model Number: L455
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1,900.00/sets >=1 sets
Packaging Details: Plywood box for L455 Various application foot switch adjusted aluminum cutting machine.It depends on requirement.
Supply Ability: 100 Set/Sets per Month L455 aluminum cutting machine

L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application

Description
Condition: New Material / Metal Processed: Stainless Steel,mild Steel Copper,aluminum Pipe;
Cutting Thickness (mm): 120 Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Automation: Semi-automatic Voltage: 380V
Rated Power: 4kw Dimension(L*W*H): 840*660*1150mm
Weight (KG): 300 Year: New
Key Selling Points: Easy To Operate Applicable Industries: Metal Pipe Machining Enterprise
Warranty: 1 Year Showroom Location: None
Type: Pipe Cutting Machine Product Name: L455 Aluminum Cutting Machine
Maximum Sawing Width: 290mm Maximum Sawing Thickness: 120mm
Spindle Speed: 3200RPM Working Table Area: 645*688mm
The Distance Of Working Table And Ground: 850mm Sawing And Cutting Angle: 90°& 45°
Air Pressure: 6-8kg Per Square Meter Weight: 300KG
Highlight:

120mm aluminium bar cutting machine

,

290mm aluminium channel cutting machine

,

3200rpm aluminium channel cutting machine

Semi-automatic Aluminum cutting machine

L455 Various application foot switch adjusted aluminum cutting machine aluminum profiles sawing cutter machine



Dedicated to aluminum cutting processing machinery

Aluminum cutting machine, is a special mechanical tool for aluminum cutting processing, aluminum cutting machine tool is a circular saw blade, saw blade inlaid with hard alloy cutter, saw blade spindle speed 2000-5000 rotation, aluminum cutting machine for cutting aluminum rod, aluminum plate, aluminum tube, aluminum profile.



Semi-automatic aluminum cutting machine

Semi-automatic aluminum cutting machine including gas oil conversion type and oil pressure type, professional aluminum cutting machine manufacturers production, the performance of the two models are different, gas oil conversion type cutting section accuracy is high, cutting material size is small, oil pressure type accuracy is poor, cutting material size is large, semi-automatic aluminum cutting machine only need to give a signal to the machine, the machine will automatically complete the clamping and cutting action, The signal device includes push-button, pneumatic pedal and electric pedal.

Product Description

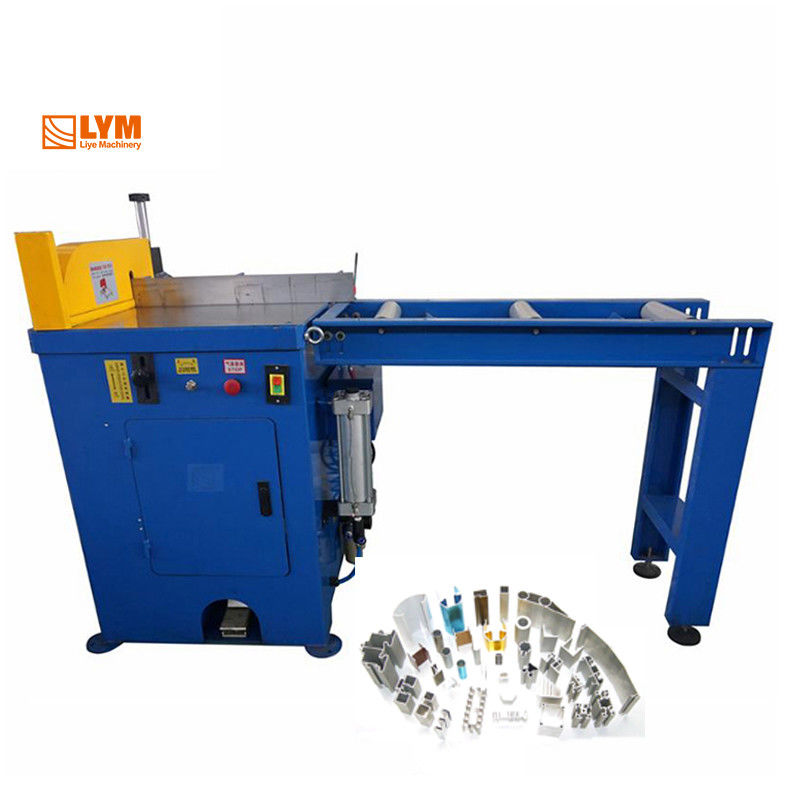

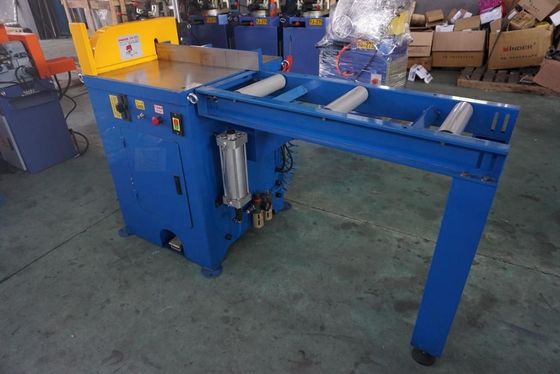

L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application 0

L455 Various application foot switch adjusted aluminum cutting machine



L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application 1

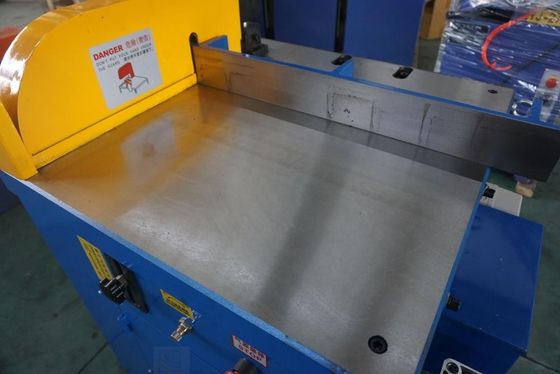

Detail:



L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application 2





Sample:



L455 Foot Switch Adjusted Aluminium Channel Bar Cutting Machine For Various Application 3



Specification:

Model L455
Sawing and cutting angle 90°& 45°
Maximum sawing width  290mm
Maximum sawing thickness 120mm
Spindle speed  3200RPM
Working table area 645*688mm
The distance of working table and ground 850mm
Motor power 4kw
Air pressure  6-8kg²
Weight of machine 300KG
Mechanical dimensions 840*660*1150mm



Feature:

1.Only need the foot switch,it can automatically fixed material,cutting material.Sheltered saw blade,can cut one pipe or several pipes at the same time.Hands no need to close to the saw blade and makes high security.
2.Fixing and cutting are controlled by individual air compressor cylinder.can adjust the pressure and cutting speed according to different material,makes the cutting stability in a completely fixed condition.
3.Adjust the pressure according to different material to avoid over pressure to damage the material.
4.Automatic injection system is mandatory to improve the effect of lubrication and cooling,makes smooth at the cutting face and low failure.
