Product Name:
L455 Semi-automatic Aluminum Cutting Machine
Maximum Sawing Width:
290mm
Maximum Sawing Thickness:
120mm
Spindle Speed:
3200RPM
Working Table Area:
645*688mm
Color:
Blue Or Support Customized
The Distance Of Working Table And Ground:
850mm
Sawing And Cutting Angle:
90°& 45°
OEM & ODM:
Available
Air Pressure:
6-8kg Per Square Meter
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
Russia
Weight:
300KG
Port:
Shanghai
Highlight:
Semi Automatic Aluminum Cutting Machine
,
850mm Aluminum Cutting Machine
,
4kw aluminium cut off machine
aluminum cutting machine
Semi-automatic aluminum cutting machine

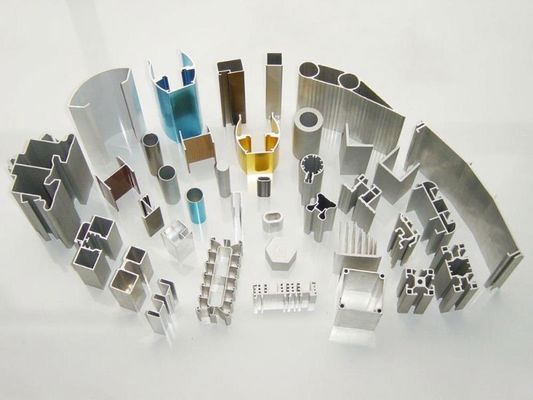

Semi-automatic gas-oil conversion high-speed aluminum cutting machine, using tungsten encrusted steel circular saw blade cutting, spindle speed 3200 RPM, using gas-oil conversion as machine feed pressing power, hidden saw blade, Saw blade by the lower cut, automatic press and cutting, machine automatic oil spray lubrication, cutting material section clean without burr, high precision, single and multiple cutting, simple and safe operation, suitable for all kinds of aluminum products cutting, aluminum rod, aluminum tube, aluminum bar and other aluminum profile saw cutting.
Semi-automatic oil pressure type aluminum cutting machine, machine structure is rough, the machine uses oil pressure as the feed power, saw blade to do parallel feed action, cutting material section accuracy is poor, cutting material size is large, suitable for aluminum rough cutting and cutting.
Semi-automatic aluminum cutting machine is a kind of mechanical equipment commonly used in metal processing industry, mainly used for cutting aluminum, copper and other metal materials. Its main function is to cut through the saw blade driven by electric motor, and has a certain degree of automation. The following are the functions, features, advantages and applications of semi-automatic aluminum cutting machine:
Function:
1. Fast and efficient cutting of metal materials;
2. Electric motor drive, with a certain degree of automatic operation;
3. The cutting Angle and length can be adjusted according to the needs;
4, can carry out a large number of continuous cutting operations;
5. High cutting precision, smooth and flat cutting surface.
Features:
1. Semi-automatic aluminum cutting machine can be applied to different specifications of metal materials, can meet different processing needs;
2. The machine has the characteristics of compact structure, simple operation, easy to operate and maintain;
3. The use of advanced cutting technology, can greatly improve the production efficiency, reduce the production cost;
4. High cutting precision, smooth cutting surface, can effectively ensure cutting quality;
5. High safety of the machine can ensure the safety of the operator.

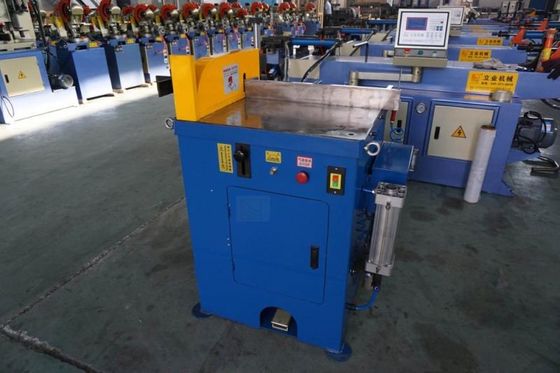

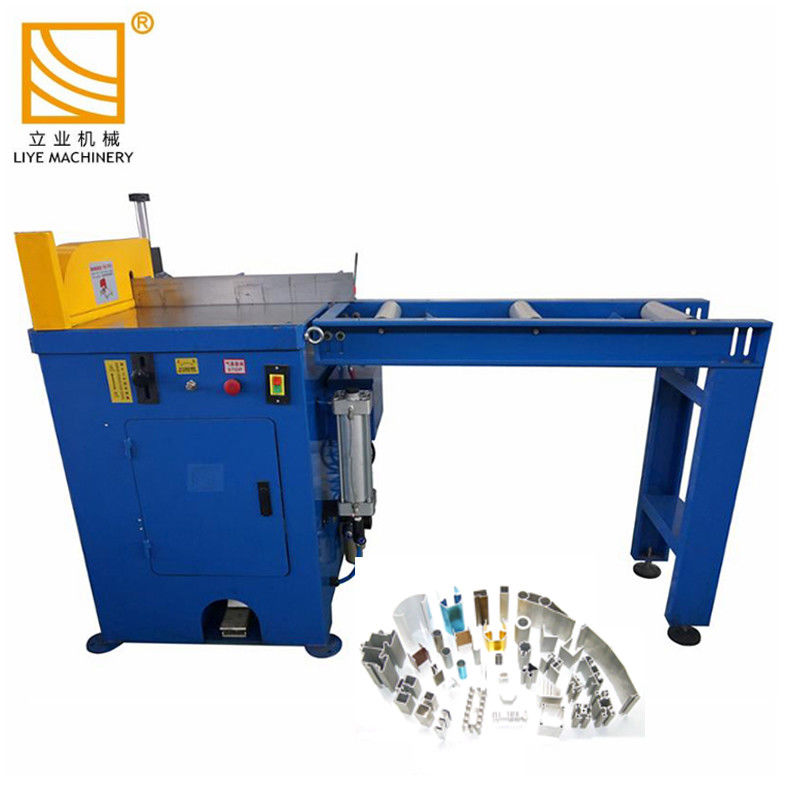

L455 Semi-automatic aluminum cutting machine
Feature:
1.Only need the foot switch,it can automatically fixed material,cutting material.Sheltered saw blade,can cut one pipe or several pipes at the same time.Hands no need to close to the saw blade and makes high security. 2.Fixing and cutting are controlled by individual air compressor cylinder.can adjust the pressure and cutting speed according to different material,makes the cutting stability in a completely fixed condition. 3.Adjust the pressure according to different material to avoid over pressure to damage the material. 4.Automatic injection system is mandatory to improve the effect of lubrication and cooling,makes smooth at the cutting face and low failure.
Specification:
Model
L455
Sawing and cutting angle
90°& 45°
Maximum sawing width
290mm
Maximum sawing thickness
120mm
Spindle speed
3200RPM
Working table area
645*688mm
The distance of working table and ground
850mm
Motor power
4kw
Air pressure
6-8kg²
Weight of machine
300KG
Mechanical dimensions
840*660*1150mm
Detail:
Sample:
Similar product
Company Information
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
