Product Details:
|
Condition: | New | Material / Metal Processed: | Stainless Steel,mild Steel Copper,aluminum Pipe; |
---|---|---|---|
Automation: | Automatic | Voltage: | 380V 50HZ |
Rated Power: | 4Kw | Dimension(L*W*H): | 1950*1300*2000mm |
Weight (KG): | 800 | Key Selling Points: | Easy To Operate |
Applicable Industries: | Metal Pipe Machining Enterprise | Warranty: | 1 Year |
Showroom Location: | None | Type: | Pipe Cutting Machine |
Product Name: | L455CNC OEM Automatic High Speed And Precise Aluminum Cutting Machine | Motor Power: | 50HZ Or 7-1/2HP (Change Grade) 50/60HZ 5KW |
Saw Blade Rotation Speed: | 50HZ 3600RPM 60HZ 3600 RPM | Servo Motor Power: | 0.75KW |
Hollow Square Tube: | 110*110mm | Hollow Circular Tube: | 125mm |
Solid Square Tube: | 100mm | Solid Circular Tube: | 110mm |
Weight: | 800KG | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
Local Service Location: | Russia | Port: | Shanghai |
Highlight: | 110mm aluminium degree cutting machine,125mm aluminium cutting saw machine,OEM aluminium cutting saw machine |
high speed and precise aluminum cutting machine

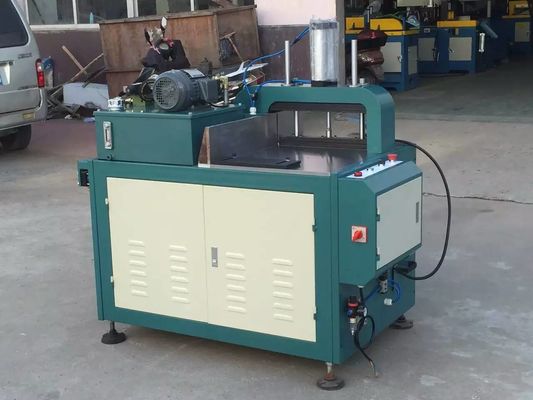

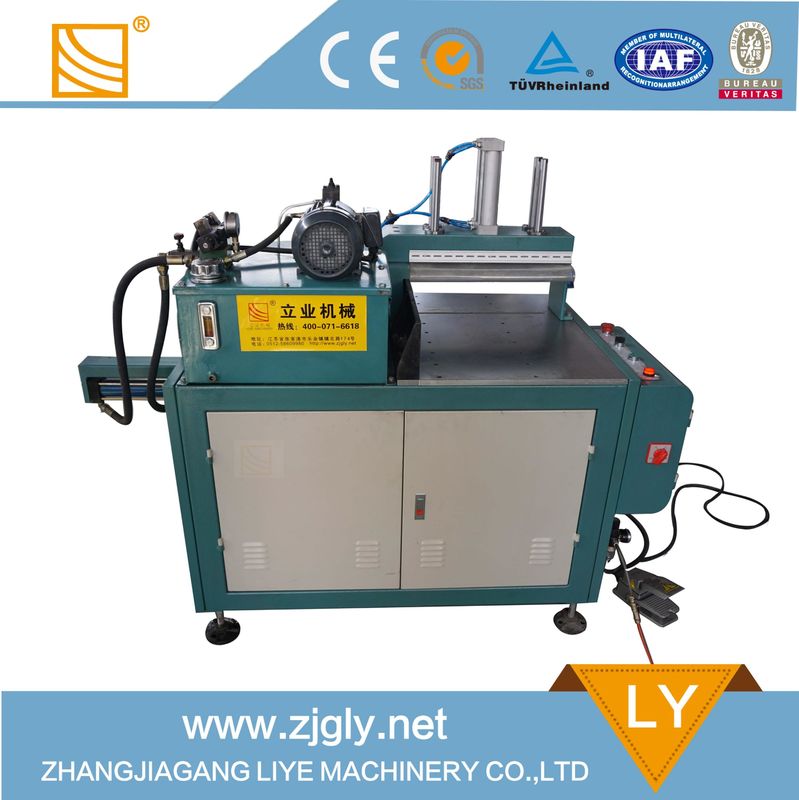

L455CNC OEM Automatic high speed and precise aluminum cutting machine
Dedicated to aluminum cutting processing machinery
Aluminum cutting machine, is a special mechanical tool for aluminum cutting processing, aluminum cutting machine tool is a circular saw blade, saw blade inlaid with hard alloy cutter, saw blade spindle speed 2000-5000 rotation, aluminum cutting machine for cutting aluminum rod, aluminum plate, aluminum tube, aluminum profile.
Automatic aluminum cutting machine
Automatic aluminum cutting machine by PLC programmable memory control machine each component workpiece, only once set, and then start the switch, the machine will automatically complete the clamping, cutting, feeding, counting and other functions, working efficiency and processing accuracy.

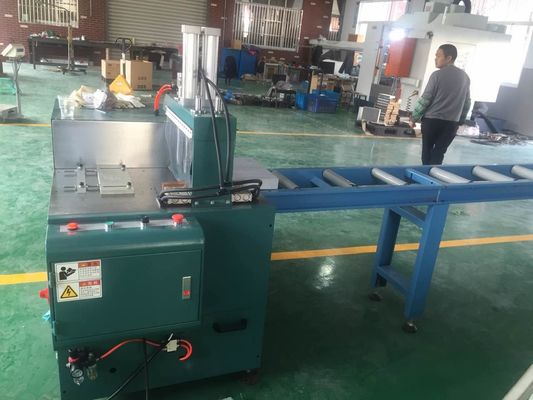

L455CNC OEM Automatic high speed and precise aluminum cutting machine
Specification:
Model | L455CNC | |
Solid square tube | mm | 100 |
Solid circular tube | mm | 110 |
Hollow circular tube | mm | 125 |
Hollow square tube | mm | 110*110 |
Profile | mm | 110*110 |
Hollow rectangular tube | mm | 150*60 |
Motor power motor | 50HZ or 7-1/2HP (Change pole) 50/60HZ 5KW | |
Saw blade rotation speed | 50HZ 3600RPM 60HZ 3600 RPM | |
Servo motor power | 0.75KW | |
Saw blade size | Outside diameter |
TIP Φ305-Φ455 Standard Φ405 |
Feeding length (L*W*H) | One storke | 5-610 |
Double storke | 5-1220 | |
Third stroke | 5-1830 | |
Measurement size of machine (L*W*H) | 1950*1300*2000mm | |
Gross weight of machine | 800KG |
Remark: industrial vacuum cleaner can be selected.
Feature:
1.The machine is full automatic hydraulic pipe cutting equipment.
2.The hidden blade can be safely on the job.
3.Automatic feeding long.
4.The outer protective cover can effectively prevent the scraps splash (external dust collecting effect is better).
5.Automatic injectiong section blade smooth ,durable.
6.Can be single or multiple cut,improve production effciency , reduce labor intensity of workers.
7.No feeding induction device can automatically stop in after the completion of workpiece processing.
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
