Manufacturing Plant, Metal Pipe Machining Enterprise
Showroom Location:
None
Product Name:
L505 3KW Motor Power Aluminium Saw Cutting Machines For Window Door Co
Sawing And Cutting Angle:
45°& 90°
Maximum Sawing Width:
500mm
Maximum Sawing Height:
160mm
Spindle Speed:
2800-3300RP
Required Pressure:
0.6-0.8MPa
Working Table Size:
580*830mm
Install The Largest Saw Blade:
505mm
Color:
Blue Or Support Customized
OEM & ODM:
Available
After Warranty Service:
Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:
Russia
Weight:
550KG
Port:
Shanghai
Highlight:
3300rpm aluminium saw cutting machine
,
2800rpm aluminium saw cutting machine
,
3kw aluminum tube cutting machine
aluminium saw cutting machines
Features:
1, automatic CNC aluminum cutting machine has the characteristics of compact structure, simple operation, easy to operate and maintain;
2. The use of advanced cutting technology, can greatly improve production efficiency, reduce production costs;
3. High cutting precision, smooth cutting surface, can effectively ensure cutting quality;
4. Can be applied to different specifications of metal materials, can meet different processing needs;
5. Can carry out high speed, high efficiency, high precision cutting operation, greatly improve the production efficiency.
Advantages:
1. Automatic CNC aluminum cutting machine has the advantages of high precision, high efficiency and high automation;
2. Can carry out a variety of cutting methods, suitable for different processing needs;
3. Can carry out a large number of continuous cutting operations, suitable for mass production;
4. High cutting precision, smooth cutting surface, can effectively ensure cutting quality;
5. Simple operation, easy to operate and maintain.
Application:
Automatic CNC aluminum cutting machine is suitable for metal processing industry, mainly used for aluminum, copper and other metal materials cutting. In aluminum doors and Windows, electronics, metallurgy, automobile manufacturing and other industries have a wide range of applications. It can achieve high precision, high efficiency, high automation of cutting operations, greatly improve the production efficiency and production quality, is a very practical metal cutting equipment.

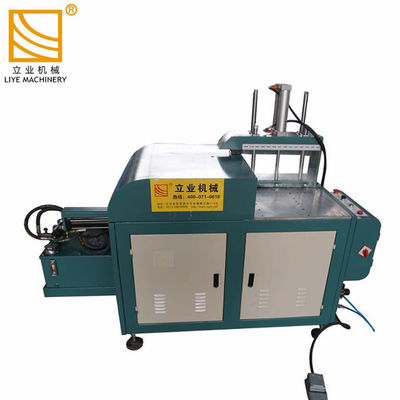

L505 3KW Motor power aluminium saw cutting machines for window door corner
Specification:
Model
L405HQ
L505HQ
Performance
Specification
Specification
Sawing and cutting angle
45°& 90°
45°& 90°
Maximum sawing width(mm)
400
500
Maximum sawing height(mm)
125
160
Spindle speed
2800-3300RPM
2800-3300RPM
Install the largest saw blade
Φ405
Φ505
Motor power
3KW
4KW
Required pressure
0.6-0.8MPa
0.6-0.8MPa
Working table size(mm)
530*830
580*830
Size of packing box
1350*1000*1480MM
1350*1000*1480MM
Weight of machine
400KG
550KG
Size of material rack(Optional accessories)
Front 1000*390MM Back 150*390MM
Front 1000*390MM Back 150*390MM
Detail:

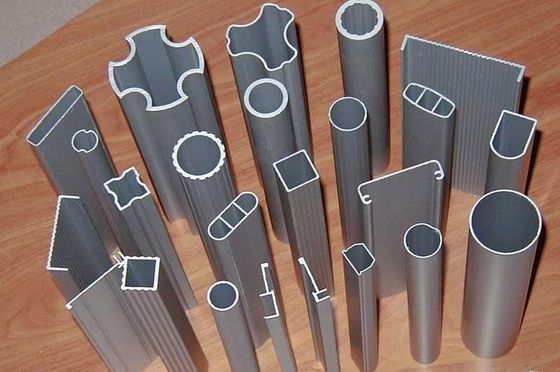

Sample:
Features 1.Installation of hidden alloy saw blade, high safety performance. 2.The automatic injection section without edges, on both sides, the saw blade is more durable. Automatic control pressure, cutting speed can be adjusted. 3.Fast pneumatic clamping and hydraulic feed, greatly improve the cutting stability. 4.Can be customized credle, before positioning , can be a plurality of sawing, cutting special materials. 5.Aluminum scrap concentrated recovery. 6.Suitable for all kinds of large size of the posterior wall of copper, aluminum and sheet metal cutting.
Similar product
Company Information
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
