SG40NC Pipe End Forming Machine Four Station Operation For 2 Inch Steel Pipe Shrinking

TUBE END FORMING MACHINE MULTI-STATION TYPE

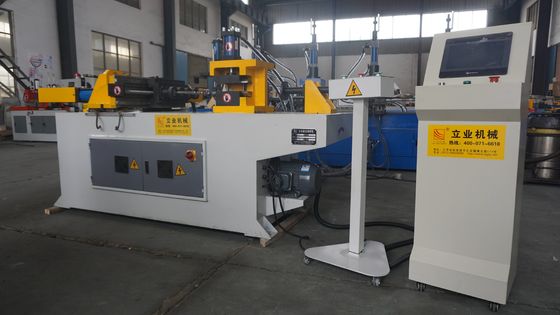

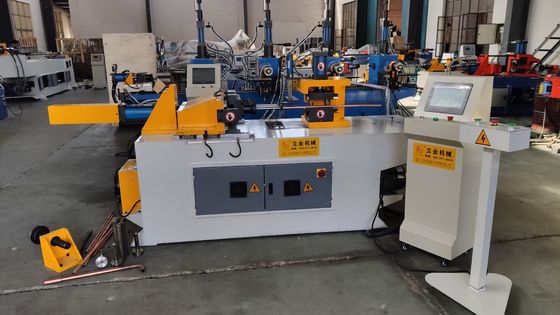

SG40NC four station operation tube end forming machine for 2 inch steel pipe shrinking

Multi- station pipe end forming (3~5 stations)

LYM Multi- station Tube end former series go up to tube diameter 168 mm in size and incorporate hydraulic or servo operation and touch screen control. They can be with 3 to 5 operating stations to process operations on tube ends and are suitable for both straight and bent tubular parts.

A multiple stations pipe end forming machine is a type of machine used in the manufacturing industry to shape and modify the ends of metal pipes.

This machine has several stations, each with its own set of forming tools, which enables it to perform a wide range of end-forming operations on a single pipe.

The pipe end forming machine can perform various end-forming processes, including expanding, reducing, flaring, beading, and threading.

These processes can be used to create different types of joints, connections, or shapes required for specific applications.

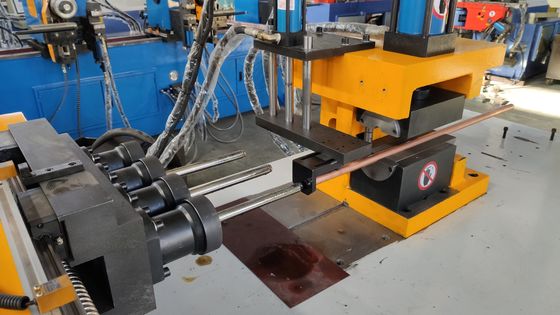

The pipe is clamped into the machine and moved from one station to another, with each station performing a specific operation on the pipe.

The forming tools can be adjusted to create different shapes and sizes, depending on the specific requirements of the job.

With multiple stations, this machine can perform several end-forming operations on a single pipe, saving time and increasing efficiency in the manufacturing process.

The LYM SG Tube End Former Series is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others.

• The LYM SG pipe end forming machine is controlled by microcomputer and driven hydraulically. It applies Chinese character display and man-machine conversation operation, and can be operated manually or semi-automatically. One-point foot switch has two functions, startup and emergency stop.
•  With five-station arrangement.Applying linear guideway as the carrier, the product can ensure action without abrasion and ensure good repeatability.
• Processing shapes: convex-shaped, concavity-shaped, nodular shape, long partial shape, square shape, topological shape, oblique shape, V-shape, cracking type and flat type. The shape of the mould shall be subject to the object to be processed.
• The distance between two ends can be adjusted according to the length of tube. (limited to the double-end forming machine only)
•  Single-end clamping or double-end clamping can be carried out according to length of the tube.
• Pipe end forming machine has characteristics including easy operation, stable performance, high work efficiency and high safety factor and it is an ideal device for tube processing industry.

Description

Tube diameter up to 168mm in size, 3 to 5 operating stations

Standard accessories

• One pair of mould (shrinkage mould and clamping mould)
• One set of common tools

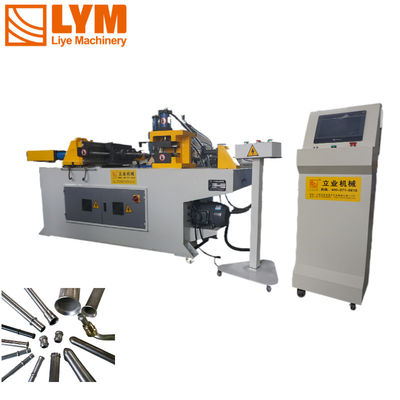

Part of the sample tube

• LYM Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others.
• They can be with 3 to 5 operating stations to process operations on tube ends and are suitable for both straight and bent tubular parts.

​

PIPE END FORMING MACHINE MAIN TECHNICAL SPECIFICATION (MULTI-STATION SERIES)
