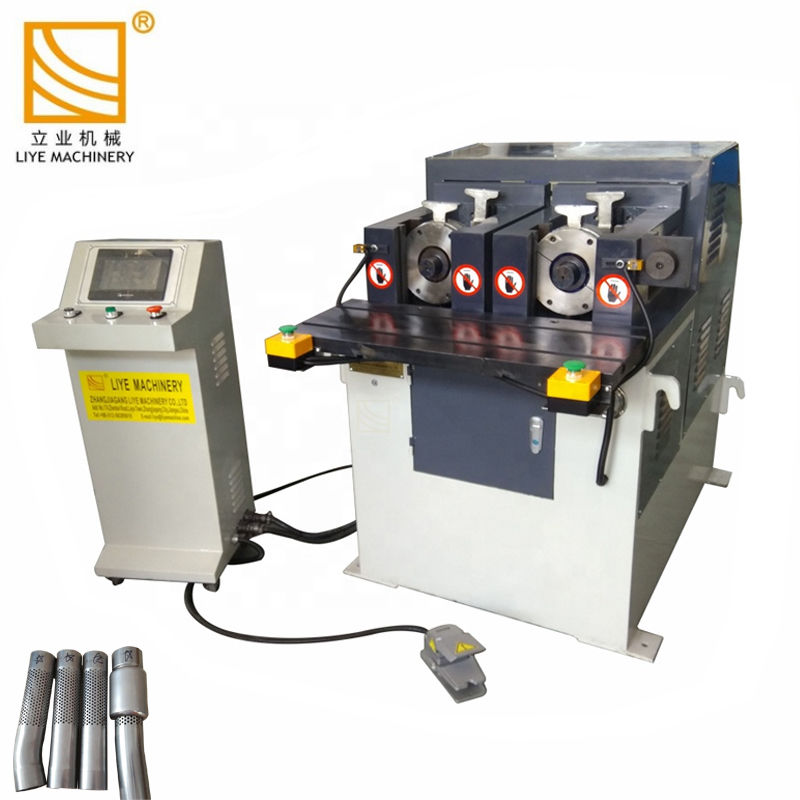

Three Working Position Tube Forming Machine Hydraulic Tube Expander Machine

Product Description:

A double heads tube end forming machine is a type of machine used in the manufacturing industry to shape and modify the ends of metal tubes.

As the name suggests, this machine has two forming heads that are used simultaneously to shape both ends of the tube. These heads can adjust to create different shapes and sizes, as necessary for specific job requirements.

The pipe end forming machine can perform a variety of end-forming processes, including expanding, reducing, flaring, beading, and threading. These processes can be used to create connections or shapes for specific applications.

The tube is clamped into the machine and the two forming heads move towards it to shape the ends. This machine is a versatile and efficient tool, and is commonly used in industries such as automotive, aerospace, and HVAC.

Features:

• Product Name: Pipe End Forming Machine
• Power Source: Electric
• Processing Speed: 20-30pcs/min
• Dimension(L*W*H): 1800*1000*1400mm
• Voltage: 220V/380V
• Power(W): 3KW
• Highlights: Pipe Shaping Machine, Pipe End Forming Equipment, Pipe End Manufacturing Machine

Technical Parameters:

Specification/model: SG40NC (Dual head type )
Input voltage: 380V±10% 50HZ Three-phase power (customizable)
Control circuit: 24V
Maximum forming pipe diameter x thickness (Iron pipe): Φ40*2mm
Maximum working process: 110mm (customizable)
Machine head spacing: Customer requirement
Oil pump: 23L
Motor power: 4kw
Hydraulic pressure: 12Mpa
Measurement size of machine: Customer requirement
Weight of machine: Customer requirement

Applications:

The LYM Pipe End Forming Machine is a tube forming equipment that is made in China and certified with CE&ISO&BV. It has a minimum ordering quantity of 1 set, and the price ranges from $8,000.00 - $15,000.00/sets. It is delivered in wooden cases and the delivery time is 15-20 work days. It can be paid using T/T, L/C, D/A, D/P, Western Union, MoneyGram, and it has a supply ability of 100 Set/Sets per Month. The material used is Carbon Steel and it is powered by Electric. It is also designed with after-sales service to provide engineers to service machinery overseas. This Pipe End Forming Machine is mainly used for pipe manufacturing equipment, tube forming equipment, and other related applications.

Customization:

We provide custom services for Pipe End Forming Machine. Our Pipe End Forming Machine is branded as LYM, and it is made in China, with certification of CE&ISO&BV. The minimum order quantity of the product is 1 set, and the price ranges from $8,000.00 - $15,000.00/sets. The packaging details depend on the requirement and it will be delivered within 15-20 work days. The payment terms are T/T, L/C, D/A, D/P, Western Union, MoneyGram. We can supply up to 100 sets per month. The power of our Pipe End Forming Machine is 3KW, with a PLC control system. The dimension is 1800*1000*1400mm. We offer 1 year warranty and voltage of 220V/380V. Our Pipe End Forming Machine is suitable for various pipe shaping, pipe fabrication and pipe fabrication works.

Support and Services:

We provide comprehensive technical support and service for Pipe End Forming Machine. Our experienced technicians and engineers provide on-site installation and commissioning services, and provide personalized solutions for customers' needs. In addition, our technicians are available for troubleshooting and repair of any malfunctioning equipment.

We also offer customer training courses to ensure that customers can use our Pipe End Forming Machine in the best possible way. Our technical support staff is available 24 hours a day, 7 days a week to help customers with any inquiries or problems they may have.
