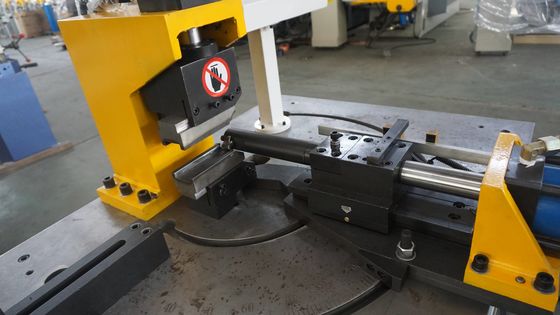

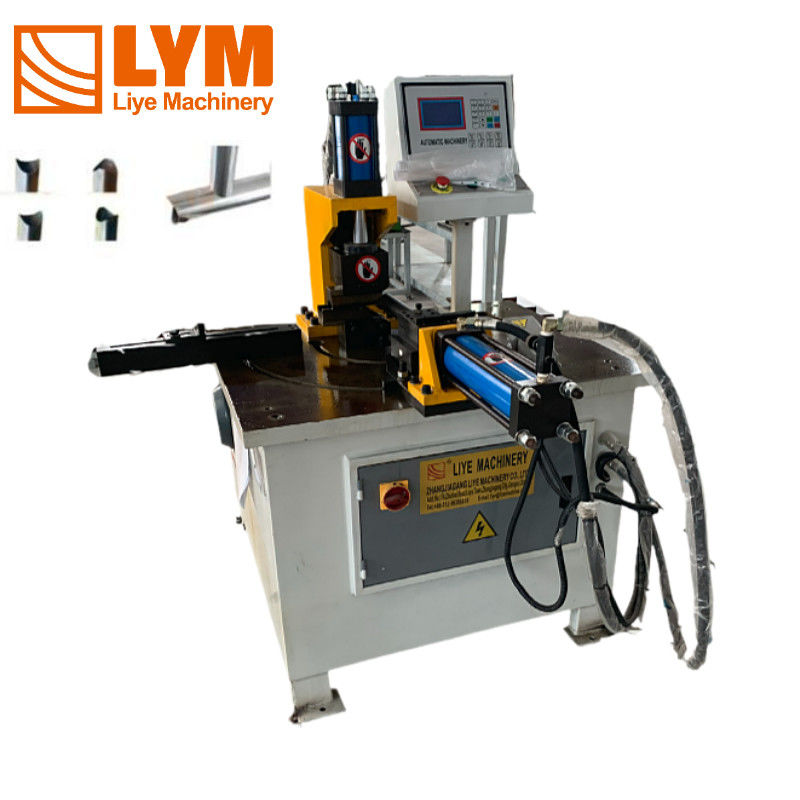

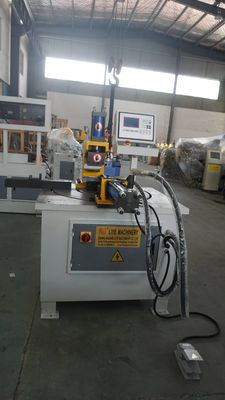

CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes

CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes
CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes

Large Image :  CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LYM-Liye Machinery
Certification: CE&ISO&BV
Model Number: CH40 hydraulic punching machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $4,600.00 - $8,000.00/sets
Packaging Details: Plywood box for CH40 Liye Machinery hydraulic punching machine for metal pipes.It depends on requirement.
Delivery Time: 20-35 work days
Supply Ability: 100 Set/Sets per Month CH40 Liye Machinery hydraulic punching machine for metal pipes
Contact Now

CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes

Description
CNC Or Not: Normal Condition: New
Machine Type: High-speed Arc Punching Machine Power Source: Mechanical
Voltage: 380V 50HZ Dimension(L*W*H): 800*900*1580mm
Weight (T): 0.8 Key Selling Points: Easy To Operate
Warranty: 1 Year Applicable Industries: Manufacturing Plant, Metal Pipe Machining Enterprise
Showroom Location: None Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine, Other
Product Name: CH40 Liye Machinery Hydraulic Punching Machine For Metal Pipes Color: Blue Or Support Customized
Motor Power: 4kw Adjustable Angle: 20°--90°
System Pressure: 12Mpa Period Of Changing Mould: 5-6 Minutes
Ability To Punching Tube (steel Pipe) Mm: 40*2 Type: Punching Machines
Power Supply: Three-phase Power 380V 50HZ (customizable) OEM & ODM: Available
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: Russia
Nominal Force (kN): 20 Port: Shanghai
Highlight:

PLC pipe notcher

,

Hydraulic notching machine for pipe

,

4kw notching machine for pipe



CH40 Liye Machinery hydraulic punching machine for metal pipes



A pipe notcher machine is a tool that is used to create a notch or a cut on a pipe or tubing.

The machine uses a rotating cutting head that is designed to make precise and clean cuts on the pipe.

The notcher is typically used in metal fabrication, construction, and other industries where precise cuts are necessary.

The machine is usually made up of a sturdy frame, a rotating cutting head, and a base that holds the pipe in place during the cutting process.

The cutting head is designed to rotate around the pipe, cutting away material to create the desired notch.

The machine is operated by a user who controls the speed and movement of the cutting head using a control panel.

CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes 0

CH40 Liye Machinery hydraulic punching machine for metal pipes



CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes 1







Detail:



CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes 2



Sample:



CH40 Hydraulic Notching Machine Punching Machine For Metal Pipes 3



Specification:

Specification/model CH40 Arc punching machine
Ability to punching tube (steel pipe) mm Φ40×2
Adjustable Angle 20°—90°
Period of changing mould 5-6 Minutes
Motor power 4kw
System pressure 12Mpa
Measurement size of machine 800*900*1580mm
Weight of machine 800KG
Power supply Three-phase power 380V 50HZ (customizable)



Feature:

High-speed arc punching machine

Features

1. 20°-90° arc can be made.

2. Positive punching and reverse punching are all available.

3. Both straight tubes and elbows can be processed.

4. Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.
