CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine

CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine
CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine

Large Image :  CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LYM-Liye Machinery
Certification: CE&ISO&BV
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $4,000.00 - $6,000.00/sets
Packaging Details: Plywood box for CH60 CE steel tube end arc punching machine /pipe notching machine.It depends on requirement.
Delivery Time: 20-35 work days
Supply Ability: 100 Set/Sets per Month pipe notching machine

CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine

Description
CNC Or Not: Normal Condition: New
Machine Type: Punching Machine Power Source: Mechanical
Voltage: 380V 50HZ Dimension(L*W*H): 850*950*1650mm
Motor Power (kW): 5 Weight (T): 0.98
Key Selling Points: Easy To Operate Warranty: 1 Year
Applicable Industries: Metal Pipe Machining Enterprise Showroom Location: None
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training
Product Name: Pipe Notching Machine Adjustable Angle: 20°--90°
System Pressure: 12Mpa Period Of Changing Mould: 5-6 Minutes
Ability To Punching Tube (steel Pipe) Mm: 60*2 Type: Punching Machines
Power Supply: Three-phase Power 380V 50HZ (customizable) OEM & ODM: Available
Nominal Force (kN): 1.8 KN After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Russia Port: Shanghai
Highlight:

380v Pipe Notching Machine

,

50hz Pipe Notching Machine

,

arc electric pipe notcher

CH60 CE steel tube end arc punching machine /pipe notching machine



Metal tube arc punching machine can be processed from various shapes of metal tubes, including round tubes, square tubes, rectangular tubes, elliptical tubes and so on. It can complete the metal pipe punching, cutting, marking and other processing technology, widely used in the following fields:such as construction, automotive, and HVAC, where tubes and pipes are used for various applications.



They are designed to be durable and reliable, with low maintenance requirements to ensure a long service life.

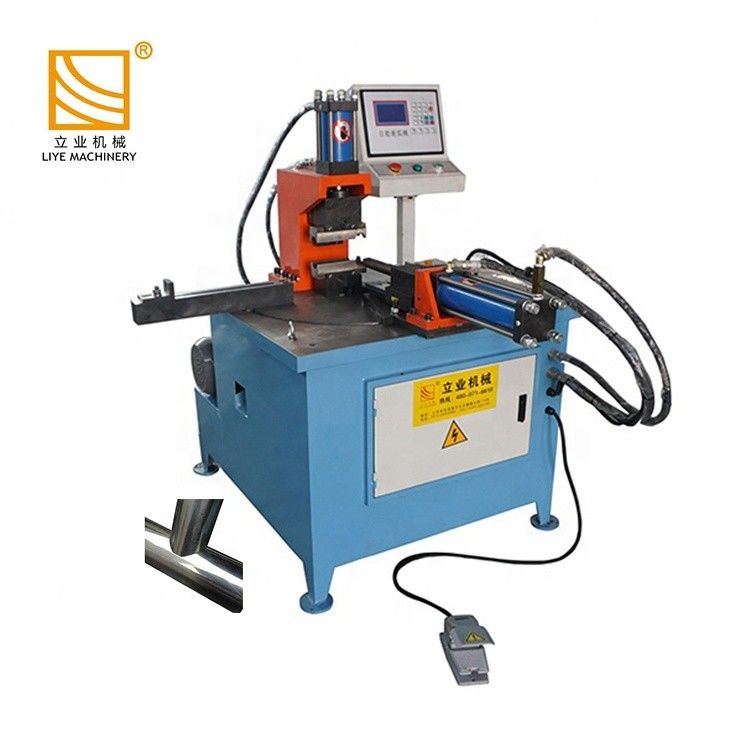

CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine 0



CH60 CE steel tube end arc punching machine /pipe notching machine



CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine 1

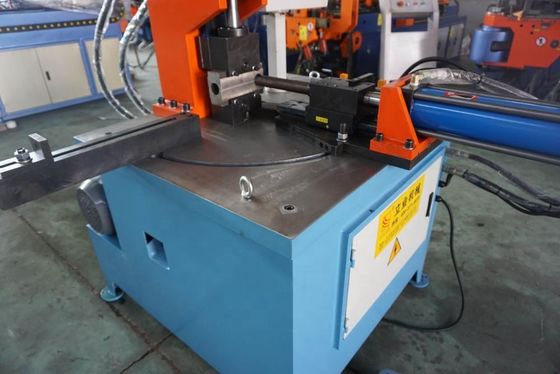

Detail:



CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine 2

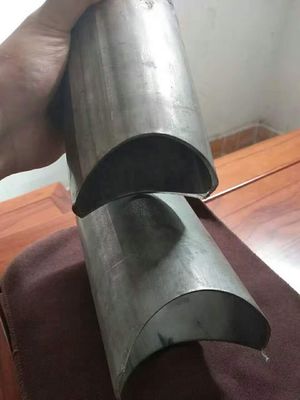

Sample:


CH60 Steel Pipe Notching Machine Tube End Arc Punching Machine 3



Specification:

Specification/model CH60 Arc punching machine
Ability to punching tube (steel pipe) mm Φ60*2
Adjustable Angle 20°—90°
Change mold time 5-6 Minutes
Motor power 5kw
System pressure 12Mpa
Measurement size of machine 850*950*1650mm
Weight of machine 980KG
Power supply Three-phase power 380V 50HZ (customizable)



Feature:

High-speed arc punching machine

Features

1. 20°-90° arc can be made.

2. Positive punching and reverse punching are all available.

3. Both straight tubes and elbows can be processed.

4. Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.
