CH60 Lower noise angle iron pipe notcher arc punching machine fish mouth machine tube notching
The notching heads can be adjusted for different angles and depths, depending on the specifications of the job.
A pipe notcher machine is a tool that is used to create a notch or a cut on a pipe or tubing.
The tubes are placed horizontally on a support surface, and the notching heads move towards the tube, cutting out the desired groove.
The machine uses a rotating cutting head that is designed to make precise and clean cuts on the pipe.
The notcher is typically used in metal fabrication, construction, and other industries where precise cuts are necessary.
Some machines may also have a rotating table to allow for notching at different angles.
The machine is usually made up of a sturdy frame, a rotating cutting head, and a base that holds the pipe in place during the cutting process.
The cutting head is designed to rotate around the pipe, cutting away material to create the desired notch.
The machine is operated by a user who controls the speed and movement of the cutting head using a control panel.
Pipe notcher machines come in a variety of sizes and shapes, depending on the diameter and thickness of the pipes they are designed to work with.
Some machines are designed for manual operation, while others are fully automated and can be programmed to create specific cuts and notches.
pipe notcher machines are essential tools for many industries that require precise and clean cuts on pipes and tubing.
tube notching machine is a type of industrial machine used to notch or cut out grooves or indentations on tubes or pipes.
Product Description

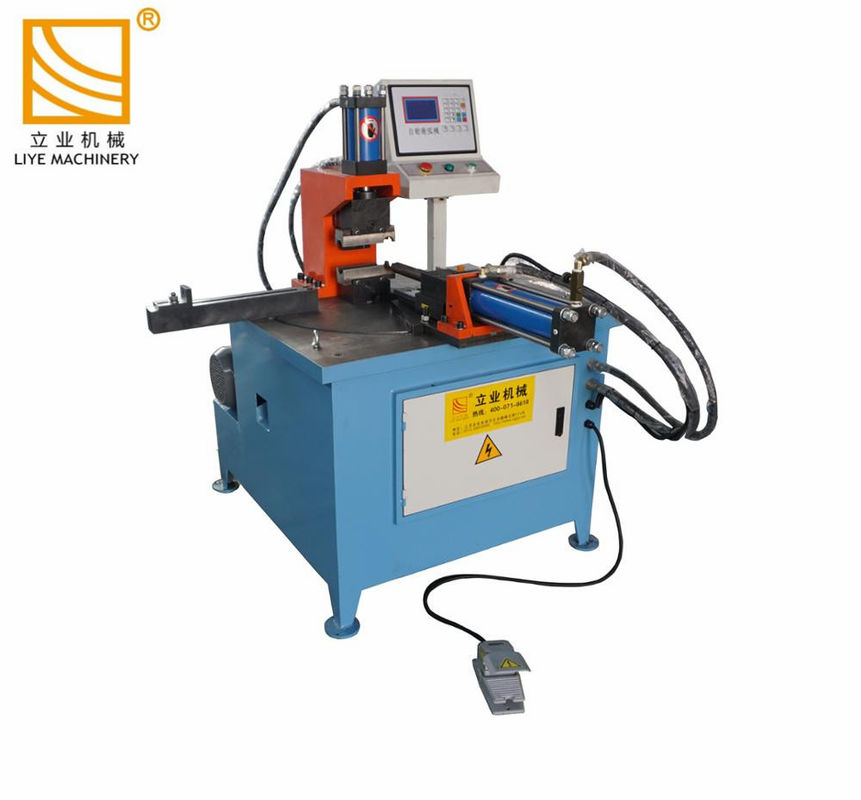

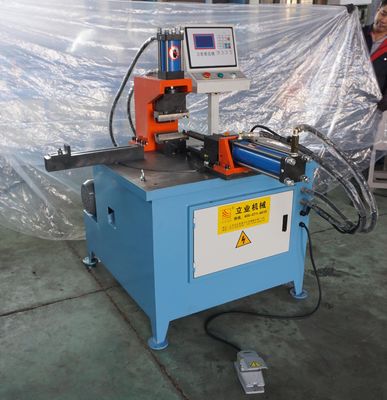

CH60 Lower noise Steel metal pipe notching punching machine
Feature:
High-speed arc punching machine
Features
1. 20°-90° arc can be made.
2. Positive punching and reverse punching are all available.
3. Both straight tubes and elbows can be processed.
4. Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.
Detail:
Sample:
Specification:
| Specification/model |
CH60 Arc punching machine |
| Ability to punching tube (steel pipe) mm |
Φ60*2 |
| Adjustable Angle |
20°—90° |
| Change mold time |
5-6 Minutes |
| Motor power |
5kw |
| System pressure |
12Mpa |
| Measurement size of machine |
850*950*1650mm |
| Weight of machine |
980KG |
| Power supply |
Three-phase power 380V 50HZ (customizable) |
Company Information
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
