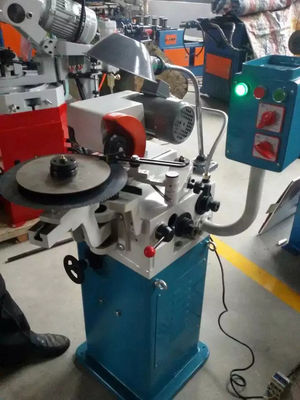

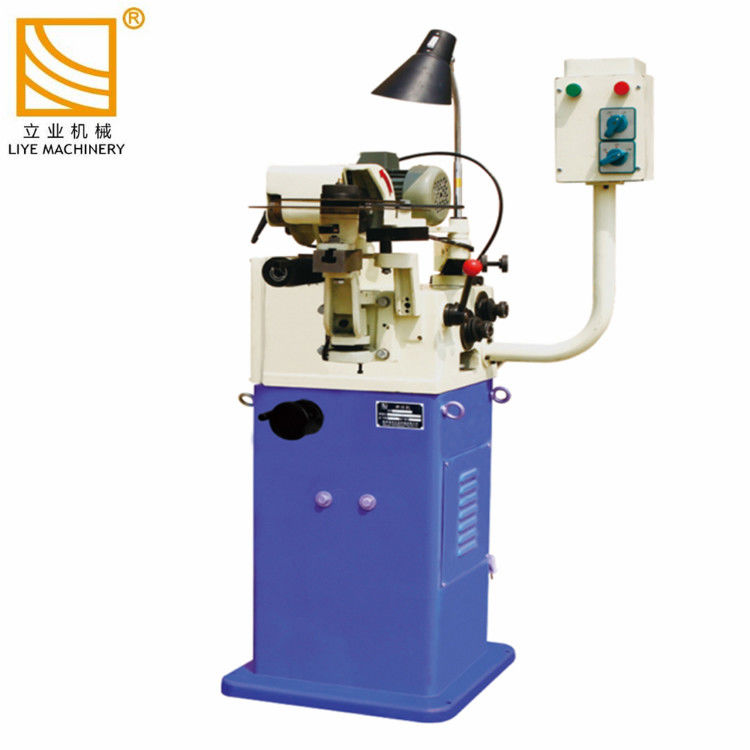

MC-450 Universal Circular Knife Edge Grinding Machine

High speed steel saw blade gear sharpeners - Introduction

High speed steel saw blade grinding machine features: 1, easy to operate, easy to learn, can make the novice become a professional and technical personnel in a short time.

2, according to different chip requirements to change the cutting Angle, tooth profile, tooth depth, can easily grind out a sharp saw blade.

3, grinding saw blade materials are: high speed steel (HSS) saw blade, flying saw (manganese steel Mn) saw blade.

4. Outer diameter of sharpened saw blade 40-600MM.

5, grinding a variety of tooth types (left and right teeth, circular teeth, triangular teeth, high and low teeth)

6. The grinding time of saw blade can be quickly adjusted according to different cutting requirements.

7. The machine head can be adjusted up or down, and the chamfer can be trimmed without changing the grinding wheel.

8. The end of the mechanical feed push claw is welded with tungsten carbide sheet, which can reduce wear. The improved design of the push arm ensures the accurate feeding.

9. After strict production control, the machine only needs routine maintenance to ensure the grinding accuracy.

MC-450 wholesale universal circular saw blade sharpening machine

Specification:

Grinding machine features:

1.The machine is designed on the principle of easy operation. Green hands can get professional quickly.

2.After several decades' operation in market, the machine has become very mature and it can grind sharp circular saw web easily.

3.As the machine is strictly manufactured and supervised, only routine maintenanee is necessary for it and it can ensure grinding accuracy for long term.

4.The adjusting rod or buttons that will be operated are arranged reas on ably to en sure the operators can adjust the cutting an gle, back clearanee angle and tooth depth of teeth easily.

5.The machine has a control button to adjust the height difference between neighboring teeth and then obtain the height differenee of C-teeth.

6.The head of the machine can be adjusted up or down and it can have grindi ng and chamfering while not replacing the grin ding wheel.

7.Tungsten carbide disk is welded at the end of feed pawl to reduce abrasion and the design of push arm is improved to ensure feed accuracy.

MK-500 CNC metal circular saw blade grinding machine   1.Using high-end 4-axis motion controller. (CNC software system completely independent development) 2.4 servo motor using Japan's Yasukawa Z-V series. 3.Linear rolling guide / ball screw on Taiwan with silver pre-pressure grinding grade products. 4.Variable frequency adjustment wheel axis speed.

MC-450 Smail gear grinding machine 1.After a rigorous manufacturing and quality control, just routine maintenance, to extend the time to ensure that grinding accuracy 2.Machine must be used to adjust the lever or button to do a reasonable arrangement, adjust the pitch, cutting angle, backlash angle is easy to adjust 3.The machine head can be adjusted can not change grinding wheel grinding chamfering work
