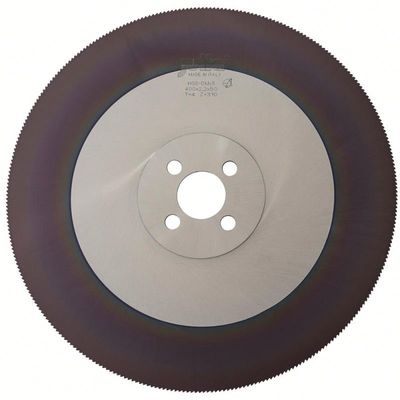

CNC Saw Blade Grinding Machine Automatic Professional Cylinder Head Grinding Machine MK-500

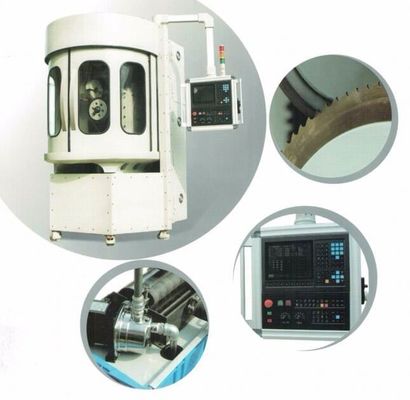

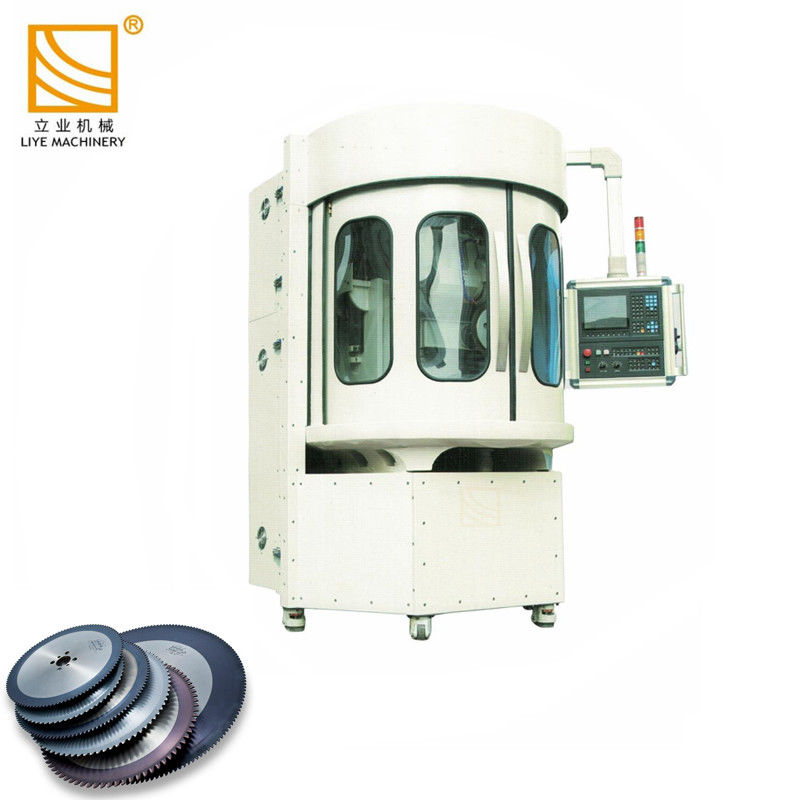

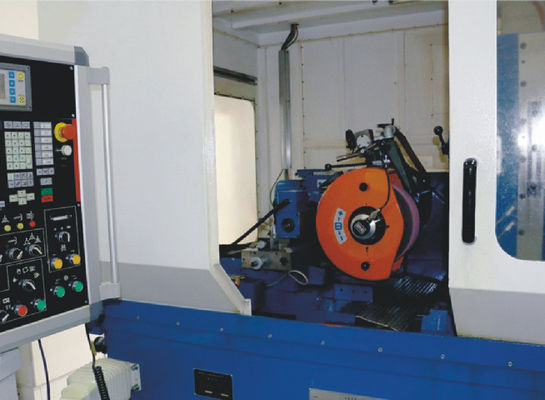

  MK-500 CNC Automatic professional cylinder head grinding machine

Machine function/ Feature intro

1.Grinding tooth type: A,AW,B,BW,C...... ( Conform to German DIN 1840 ) For detaiLplease check the grinding type list

2.With the function of CNC automatic precision trim CBN grind wheel(For detail,please check the drawing of grinding wheel)

3.With the function of save and read customer* s information,also can achieve accurate indexing of customer data

4.According to the different grindi ng working art,grind speed/feedi ng rate with the multiplying buttons nd the dynamic data will be display.

5.Various type of grin ding tooth,the parameters have the complete accurate mathematical model and trajectory computi ng.

6.One piece of grinding wheel can grind various of grinding tooth with the different parameters. ( Theoretical satisfaction,it is affected by grinding efficie ncy ) Same thickness grin ding wheel can make d iff ere nt pitch,only need very few stock.

7.AlI data of saw-blade tooth parameter are auto input, no need to adjust by hand.

8.With an expert database of grinding teeth.(According to the different material,different sectional

shapes,different size, there has the auxiliary guidanee of the parameters such as the front Angle, back Angle,depth, tooth number; tooth type, etc.

9.Dynamic update the grinding process dynamic display, open/repair sequence number; processing time, the remaining time.

10.With a four-axis manual pulse generator, the manual mode of any axis is adjusted according to the different axis selection.

11.With cooling liquid strong magnetic filtration separation device.(grinding wheel ash can automatic filtering and collection)

12.With the function of different teeth, different parameter teeth and the shape of the grinding wheel section can be checked, compared and alarm.

CNC automatic grinding wheel schematic diagram

Main Machine Part

1.Adopt high-tech 4 axis motion controller.(independent research and

development the NC software system)

2.4 servo motors adopt Japan Yaskawa J • V series

3.Adopt Taiwan HINWIN liner guideway and precision ground ball-screws

4.Frequency control the grinding wheel speed

5.Adopt P4 grade grinding axis and screw axis

6.Castings and welding parts use the stress relief annealing treatment

 Grinding specifications:

Wheel specifications:

Motor:

High pressure coolant:

Magnet in addition to chip machine:

MK-500 CNC metal circular saw blade grinding machine   1.Using high-end 4-axis motion controller. (CNC software system completely independent development) 2.4 servo motor using Japan's Yasukawa Z-V series. 3.Linear rolling guide / ball screw on Taiwan with silver pre-pressure grinding grade products. 4.Variable frequency adjustment wheel axis speed.

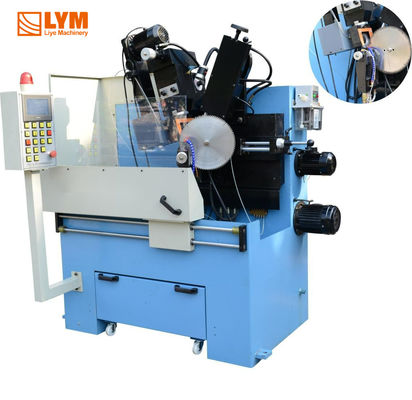

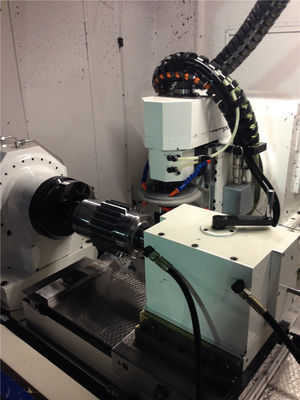

MC-450 Smail gear grinding machine 1.After a rigorous manufacturing and quality control, just routine maintenance, to extend the time to ensure that grinding accuracy 2.Machine must be used to adjust the lever or button to do a reasonable arrangement, adjust the pitch, cutting angle, backlash angle is easy to adjust 3.The machine head can be adjusted can not change grinding wheel grinding chamfering work
