Automatic Saw Blade Grinding Machine M500CNC Gear Tooth Grinding Machine

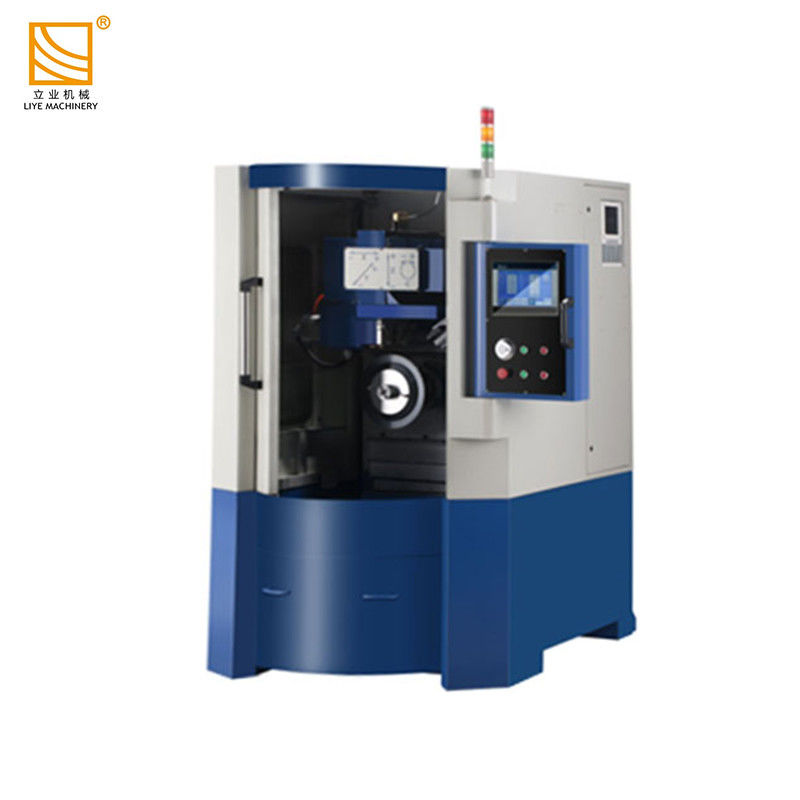

  M500CNC Gear grinding machine

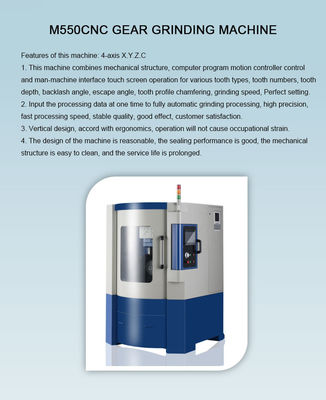

Features of this machine: 4-axis X.Y.Z.C

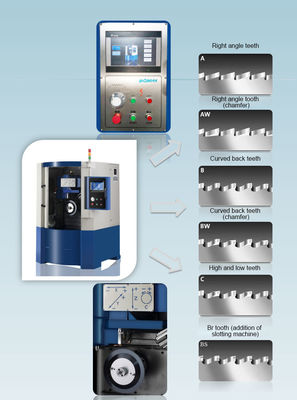

1. This machine combines mechanical structure, computer program motion controller control and man-machine interface touch screen operation for various tooth types, tooth numbers, tooth depth, backlash angle, escape angle, tooth profile chamfering, grinding speed, Perfect setting.
2. Input the processing data at one time to fully automatic grinding processing, high precision,fast processing speed, stable quality, good effect, customer satisfaction.
3. Vertical design, accord with ergonomics, operation will not cause occupational strain.
4. The design of the machine is reasonable, the sealing performance is good, the mechanical structure is easy to clean, and the service life is prolonged.

 Grinding specifications:

Wheel specifications:

Motor:

High pressure coolant:

Magnet in addition to chip machine:

MK-500 CNC metal circular saw blade grinding machine   1.Using high-end 4-axis motion controller. (CNC software system completely independent development) 2.4 servo motor using Japan's Yasukawa Z-V series. 3.Linear rolling guide / ball screw on Taiwan with silver pre-pressure grinding grade products. 4.Variable frequency adjustment wheel axis speed.

MC-450 Smail gear grinding machine 1.After a rigorous manufacturing and quality control, just routine maintenance, to extend the time to ensure that grinding accuracy 2.Machine must be used to adjust the lever or button to do a reasonable arrangement, adjust the pitch, cutting angle, backlash angle is easy to adjust 3.The machine head can be adjusted can not change grinding wheel grinding chamfering work

Related product:

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
