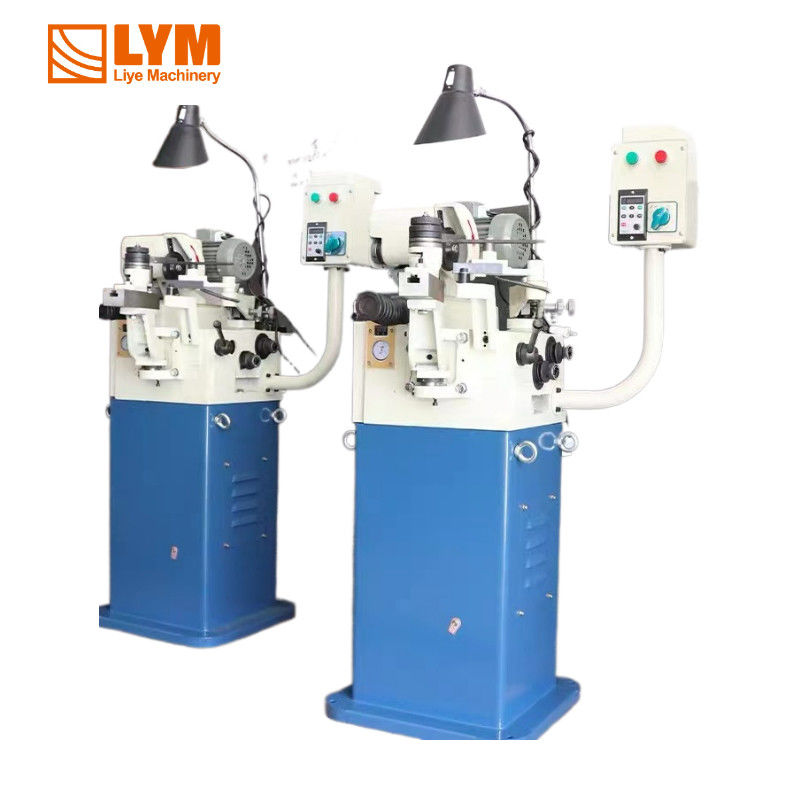

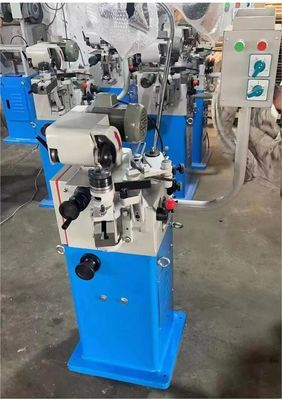

Automatic Blade Grinding Machine MC-450 Easy Operation Band Saw Blade Sharpening

The technical field of saw blade gear grinding machine refers to a new type of electric saw blade gear grinding machine which can adjust the Angle. The saw blade gear grinding machine adopts a fixed motor and grinding wheel to grind the saw blade. The gear grinding machine of this structure realizes the efficient operation of mechanical grinding saw blade, including a guide rail seat, a grinding wheel working device, a gear working device and a gear gear device. The working device of grinding wheel includes a driving motor and a grinding wheel. The driving motor drives the grinding wheel to rotate. The guide rail seat and gear shifting device are installed on the working table. An adjusting seat is arranged between the grinding wheel working device and the guide rail seat for vertically raising the longitudinal Angle of the rotating motor, and an Angle adjusting mechanism which can adjust the horizontal position Angle is arranged on the adjusting seat to adjust the Angle of the grinding wheel in all directions.

MC-450 easy operation band saw blade sharpening machine

Specification:

Grinding machine features:

1.The machine is designed on the principle of easy operation. Green hands can get professional quickly.

2.After several decades' operation in market, the machine has become very mature and it can grind sharp circular saw web easily.

3.As the machine is strictly manufactured and supervised, only routine maintenanee is necessary for it and it can ensure grinding accuracy for long term.

4.The adjusting rod or buttons that will be operated are arranged reas on ably to en sure the operators can adjust the cutting an gle, back clearanee angle and tooth depth of teeth easily.

5.The machine has a control button to adjust the height difference between neighboring teeth and then obtain the height differenee of C-teeth.

6.The head of the machine can be adjusted up or down and it can have grindi ng and chamfering while not replacing the grin ding wheel.

7.Tungsten carbide disk is welded at the end of feed pawl to reduce abrasion and the design of push arm is improved to ensure feed accuracy.

MK-500 CNC metal circular saw blade grinding machine   1.Using high-end 4-axis motion controller. (CNC software system completely independent development) 2.4 servo motor using Japan's Yasukawa Z-V series. 3.Linear rolling guide / ball screw on Taiwan with silver pre-pressure grinding grade products. 4.Variable frequency adjustment wheel axis speed.

MC-450 Smail gear grinding machine 1.After a rigorous manufacturing and quality control, just routine maintenance, to extend the time to ensure that grinding accuracy 2.Machine must be used to adjust the lever or button to do a reasonable arrangement, adjust the pitch, cutting angle, backlash angle is easy to adjust 3.The machine head can be adjusted can not change grinding wheel grinding chamfering work

Related product:

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
