MC-450 Gear Grinding Machine
External Diameter Of Grinding Wheel:
75-150mm
Feed Rate:
45-180 Teeth/min
Transmission Motor:
1/2HP
Grinding Wheel Motor:
3/4HP
Pitch:
Pitch
Cutting Angle:
-5° -30°
Wheel Speed:
4200PRM
OEM&ODM:
Available
After Warranty Service:
Video Technical Support
Local Service Location:
None
Port:
Shanghai
Highlight:
150mm knife blade grinding machine
,
75mm knife blade grinding machine
,
8mm knife blade grinder
With telescopic lifting rod, easy to move grinding machine
MC-450 Gear grinding machine With telescopic lifting rod, easy to move

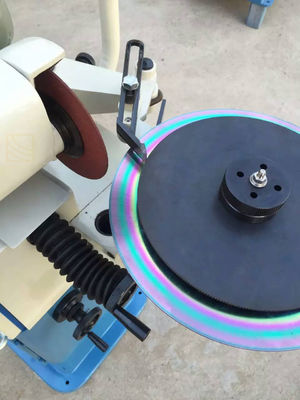

Operation Tips
1Adjustment button for teeth: before grinding completion, sometimes due to the grinding wheel is not accurate or other reasons, leading to large grinding of the front Angle of the sawtooth (skilled people can judge from grinding sound), at this time, it is necessary to adjust clockwise, fine tuning, small adjustment (important to say three times) of the grinding wheel tooth adjustment button, so that the front Angle of the sawtooth is lightly grinding, and the rear Angle of the sawtooth is slightly heavier grinding, until the overall polishing is completed.
2.Tooth depth adjustment button: Turn the tooth depth adjustment button clockwise to make the serrated tooth depth slightly shallower before grinding, pay attention not to use grinding wheel and then constant grinding and polishing for a while, which is conducive to improving the grinding quality of the blade, but also can adjust the original slow grinding speed slightly faster grinding and polishing for a while to improve the grinding quality.
3.Grinding wheel thickness: In most grinding scenarios, 1.0 thick grinding wheel can be solved. However, if the teeth are too small or too large, thin or thick grinding wheel should be selected. The thickness of thin grinding wheel should be a few points, and the thickness of thick grinding wheel should be a few points to two points. If the back of the tooth is too straight or the body of the tooth is too thin, the grinding wheel should be replaced by a thin grinding wheel if the back of the tooth is too bent or the body of the tooth is too fat. If the back of the tooth is too bent or the body of the tooth is too fat, the grinding wheel should be replaced by a thin grinding wheel if the back of the tooth is too straight or the body of the tooth is too thin.
4.Frequent tightening of the saw blade locking screw during work can not make the push claw force, otherwise it will affect the precision of the push teeth and damage the machine, can be put between the push claw and the teeth of the indexing plate a piece of cardboard or sheet separated to avoid the push claw force.
5.Indexing plate: The thickness of the indexing plate is generally five or six millimeters. Generally, the difference between the outside diameter of the dividing disk and that of the saw blade should not be too large, but when the thickness of the grinding wheel is thin, the dividing disk with a larger outside diameter can be used, and when the thickness of the grinding wheel is thick, the dividing disk with a smaller outside diameter can be used.
This machine is designed to be sealed without disassembly, disassembly will damage the machine.

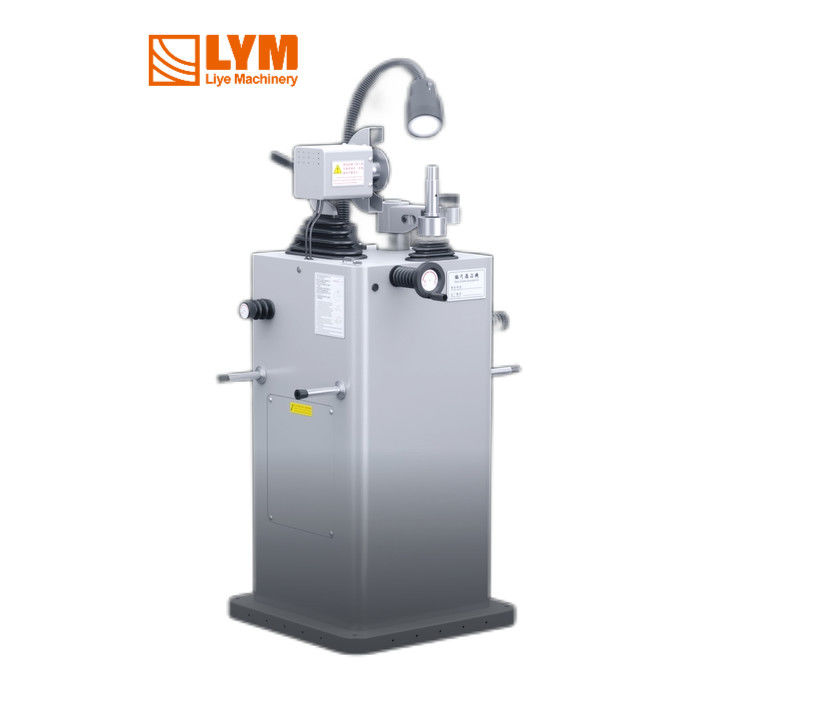

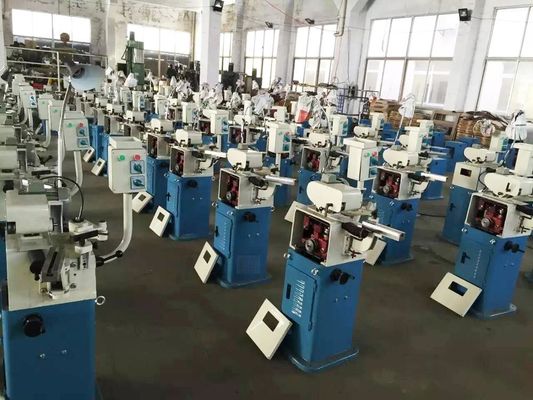

MC-450 Gear grinding machine
Specification:
Model
MC-450
Circular saw blade outside diameter
50-450mm
Pitch
25mm(max)
Tooth
8mm(max)
Cutting angle
-5° -30°
Feed rate
45-180 teeth/min
Thickness of saw blade
8mm(max)
External diameter of grinding wheel
75-150mm
Wheel speed
4200PRM
Transmission motor
1/2HP
Grinding wheel motor
3/4HP
Net weight
130kg
Machine size
800*800*1410mm
Grinding machine features:
1.The machine is designed on the principle of easy operation. Green hands can get professional quickly.
2.After several decades' operation in market, the machine has become very mature and it can grind sharp circular saw web easily.
3.As the machine is strictly manufactured and supervised, only routine maintenanee is necessary for it and it can ensure grinding accuracy for long term.
4.The adjusting rod or buttons that will be operated are arranged reas on ably to en sure the operators can adjust the cutting an gle, back clearanee angle and tooth depth of teeth easily.
5.The machine has a control button to adjust the height difference between neighboring teeth and then obtain the height differenee of C-teeth.
6.The head of the machine can be adjusted up or down and it can have grindi ng and chamfering while not replacing the grin ding wheel.
7.Tungsten carbide disk is welded at the end of feed pawl to reduce abrasion and the design of push arm is improved to ensure feed accuracy.
2.4 servo motor using Japan's Yasukawa Z-V series.
3.Linear rolling guide / ball screw on Taiwan with silver pre-pressure grinding grade products.
4.Variable frequency adjustment wheel axis speed.
MC-450
Smail gear grinding machine
1.After a rigorous manufacturing and quality control, just routine maintenance, to extend the time to ensure that grinding accuracy
2.Machine must be used to adjust the lever or button to do a reasonable
arrangement, adjust the pitch, cutting angle, backlash angle is easy to adjust
3.The machine head can be adjusted can not change grinding wheel grinding chamfering work
