High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine
High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine

Large Image :  High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LYM-Liye Machinery
Certification: CE&ISO&BV
Model Number: CH60
Payment & Shipping Terms:
Price: $6,000.00/sets 1-1 sets
Packaging Details: Plywood box for CH60 High-speed arc punching machine.It depends on requirement.
Delivery Time: 20-35 work days
Supply Ability: 100 Set/Sets per Month CH60 High-speed arc punching machine
Contact Now

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine

Description
CNC Or Not: Normal Condition: New
Machine Type: Punching Machine Power Source: Mechanical
Voltage: 380V 50HZ Dimension(L*W*H): 850*950*1650mm
Motor Power (kW): 5 Weight (T): 0.98
Key Selling Points: Easy To Operate Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Metal Pipe Machining Enterprise Showroom Location: None
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training
Product Name: CH60 High-speed Arc Punching Machine Color: Blue Or Support Customized
Adjustable Angle: 20°--90° System Pressure: 12Mpa
Period Of Changing Mould: 5-6 Minutes Ability To Punching Tube (steel Pipe) Mm: 60*2
Type: Punching Machines OEM & ODM: Available
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: Russia
Port: Shanghai
Highlight:

high speed hole saw pipe notcher

,

380v hole saw tube notcher

,

50hz hole saw tube notcher

CH60 High-speed arc punching machine tube notcher tube notcher End mill pipe notcher machine fish mouth machine



The metal tube arc punching machine  can be programmed to achieve automatic production, reduce manual intervention, improve production efficiency;



Widely used: metal pipe arc punching machine can be widely used in construction, furniture, automobile, machinery manufacturing and other industries, to meet the processing needs of different industries for metal pipe.

arc punching machine



Product Description

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 0

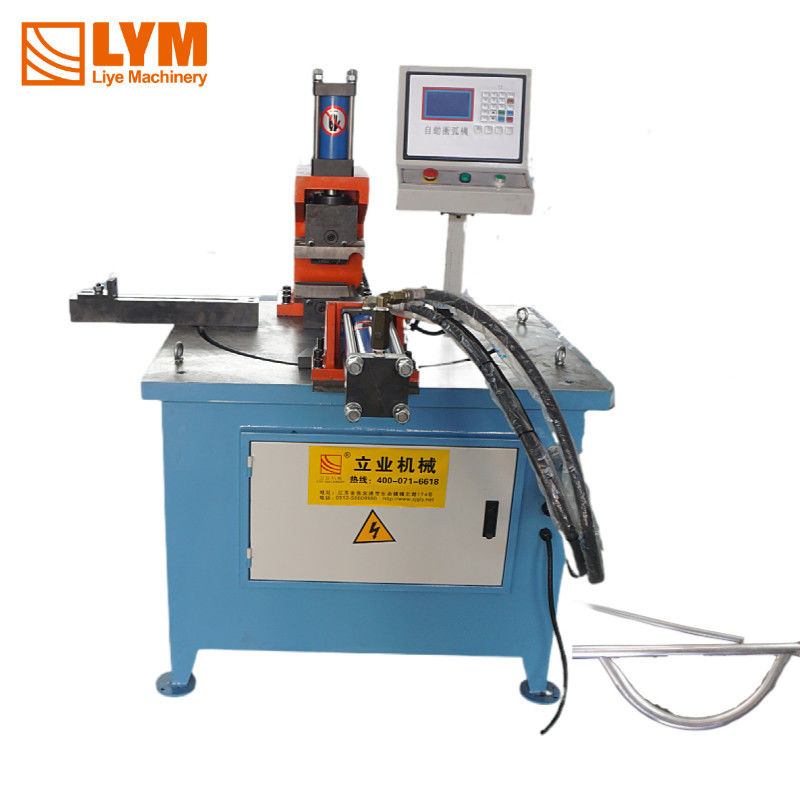

CH60 High-speed arc punching machine tube notcher



High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 1

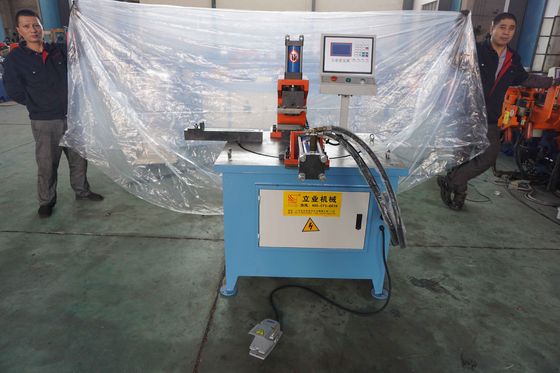

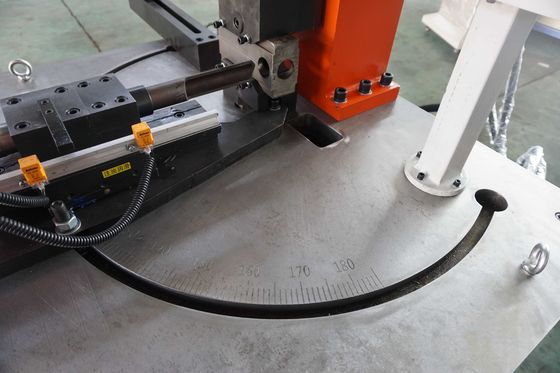

Detail:



High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 2



Sample:


High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 3



Specification:

Specification/model CH60 Arc punching machine
Ability to punching tube (steel pipe) mm Φ60*2
Adjustable Angle 20°—90°
Change mold time 5-6 Minutes
Motor power 5kw
System pressure 12Mpa
Measurement size of machine 850*950*1650mm
Weight of machine 980KG
Power supply Three-phase power 380V 50HZ (customizable)



Feature:

High-speed arc punching machine

Features

1. 20°-90° arc can be made.

2. Positive punching and reverse punching are all available.

3. Both straight tubes and elbows can be processed.

4. Compared with punching machine, it has wider processing range, safer operation, simpler mode change and lower noise.

Similar product

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 4High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 5



Company Information

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 6

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 7

Parts brand

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 8

PackingShipping

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 9

FAQ

High Speed Hole Saw Pipe Notcher End Mill Fish Mouth Machine 10
