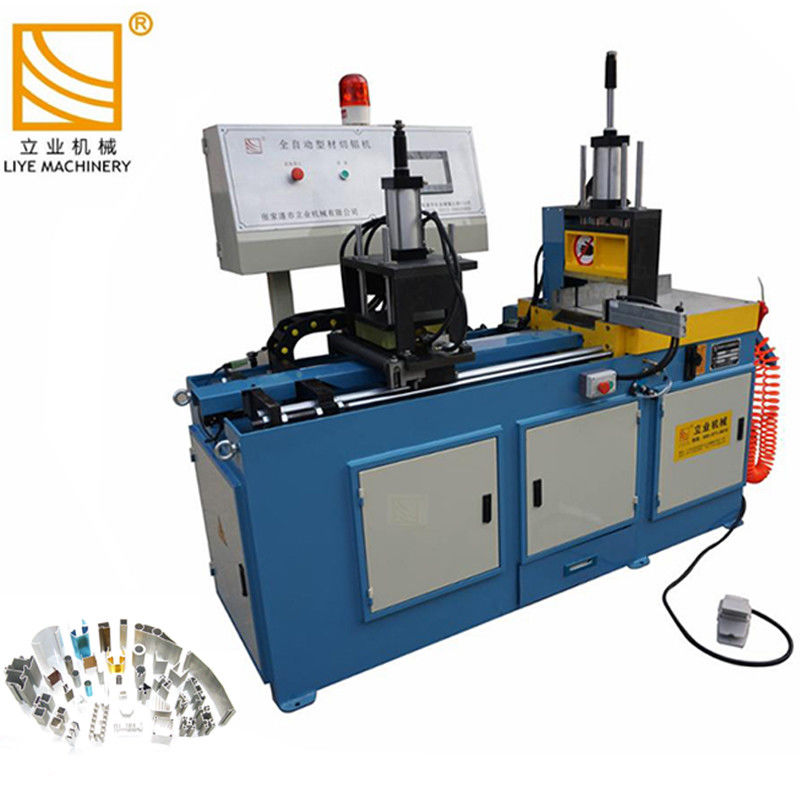

CNC Aluminum Cutting Machine Automatic Single Head Aluminium Degree Cutter Machine

Large Image : CNC Aluminum Cutting Machine Automatic Single Head Aluminium Degree Cutter Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	LYM-Liye Machinery
Certification:	CE&ISO&BV

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$10,000.00 - $16,000.00/sets
Packaging Details:	Plywood box for CNC Automatic single head cutting saw aluminum window machine.It depends on requirement.
Supply Ability:	100 Set/Sets per Month CNC Automatic single head cutting saw aluminum window machine

Contact Now

CNC Aluminum Cutting Machine Automatic Single Head Aluminium Degree Cutter Machine

Description

Condition:	New	Type:	Aluminum Cutting Machine
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Voltage:	380V 50HZ
Rated Power:	4Kw	Dimension(LWH):	195013002000mm
Warranty:	1 Year	Key Selling Points:	Easy To Operate
Applicable Industries:	Metal Pipe Machining Enterprise	Showroom Location:	None
Product Name:	CNC Automatic Single Head Cutting Saw Aluminum Window Machine	Motor Power:	50HZ Or 7-1/2HP (Change Grade) 50/60HZ 5KW
Saw Blade Rotation Speed:	50HZ 3600RPM 60HZ 3600 RPM	Servo Motor Power:	0.75KW
Hollow Square Tube:	110*110mm	Hollow Circular Tube:	125mm
Color:	Blue Or Support	Solid Square Tube:	100mm
Solid Circular Tube:	110mm	OEM&ODM:	Available
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	Russia
Weight:	800KG	Port:	Shanghai
Highlight:	CNC Aluminum Cutting Machine , 3600rpm Aluminum Cutting Machine , 125mm aluminium degree cutter machine

Automatic CNC aluminum cutting machine is an advanced CNC cutting equipment, it can automatically complete aluminum, copper and other metal materials cutting. The following are the functions, characteristics, advantages and applications of automatic CNC aluminum cutting machine:

single head cutting saw aluminum window machine

Automatic aluminum cutting machine

Automatic aluminum cutting machine by PLC programmable memory control machine each component workpiece, only once set, and then start the switch, the machine will automatically complete the clamping, cutting, feeding, counting and other functions, working efficiency and processing accuracy.

Advantages:

1. Automatic CNC aluminum cutting machine has the advantages of high precision, high efficiency and high automation;

2. Can carry out a variety of cutting methods, suitable for different processing needs;

3. Can carry out a large number of continuous cutting operations, suitable for mass production;

4. High cutting precision, smooth cutting surface, can effectively ensure cutting quality;

5. Simple operation, easy to operate and maintain.

Product Description

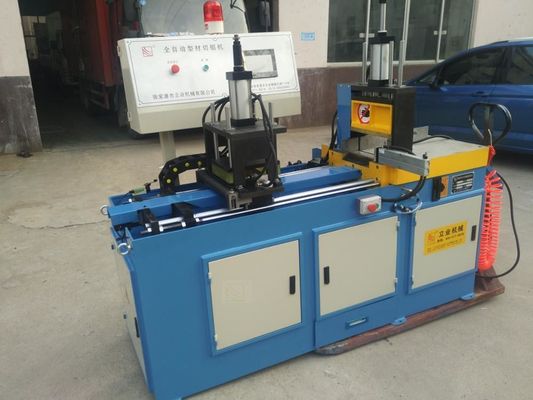

CNC Aluminum Cutting Machine Automatic Single Head Aluminium Degree Cutter Machine 0

CNC Automatic single head cutting saw aluminum window machine

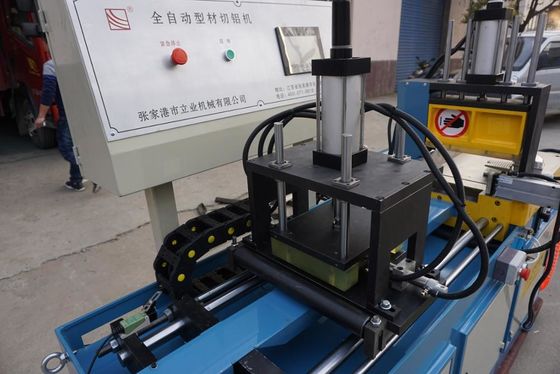

CNC Aluminum Cutting Machine Automatic Single Head Aluminium Degree Cutter Machine 1

Detail:

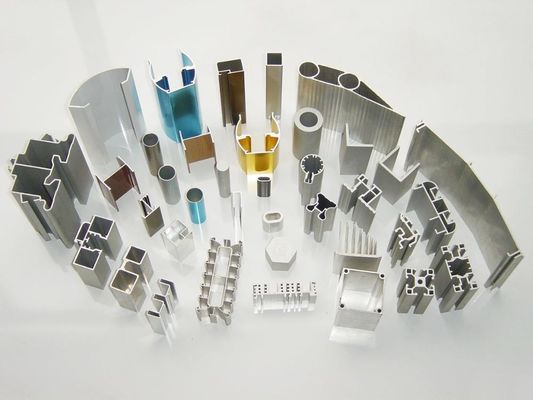

Sample:

Specification:

Model	L455CNC
Solid square tube	mm	100
Solid circular tube	mm	110
Hollow circular tube	mm	125
Hollow square tube	mm	110*110
Profile	mm	110*110
Hollow rectangular tube	mm	150*60
Motor power motor	50HZ or 7-1/2HP (Change pole) 50/60HZ 5KW
Saw blade rotation speed	50HZ 3600RPM 60HZ 3600 RPM
Servo motor power	0.75KW
Saw blade size	Outside diameter	TIP Φ305-Φ455 Standard Φ405
Feeding length (LWH)	One storke	5-610
	Double storke	5-1220
	Third stroke	5-1830
Measurement size of machine (LWH)	195013002000mm
Gross weight of machine	800KG

Remark: industrial vacuum cleaner can be selected.

Feature:
1.The machine is full automatic hydraulic pipe cutting equipment.
2.The hidden blade can be safely on the job.
3.Automatic feeding long.
4.The outer protective cover can effectively prevent the scraps splash (external dust collecting effect is better).
5.Automatic injectiong section blade smooth ,durable.
6.Can be single or multiple cut,improve production effciency , reduce labor intensity of workers.
7.No feeding induction device can automatically stop in after the completion of workpiece processing.
