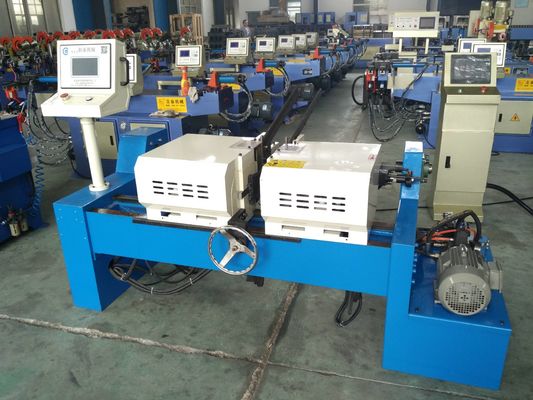

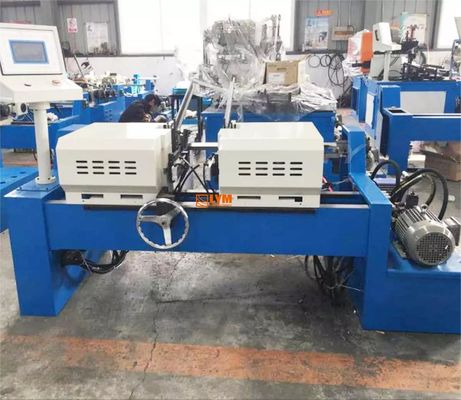

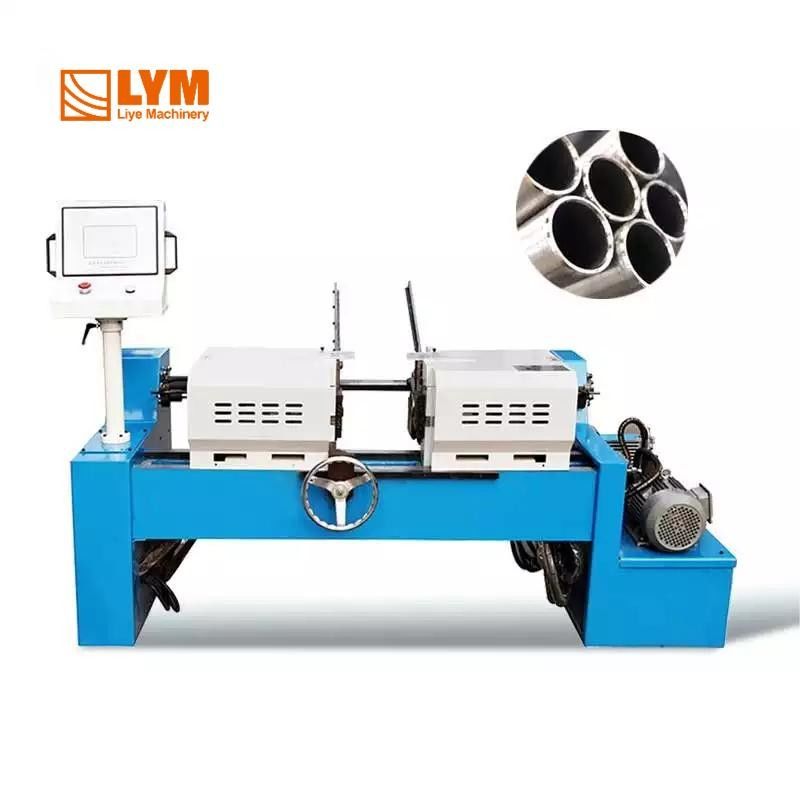

Automatic Pipe End Chamfering Machine Double Ends Metal Pipe Rod Chamfering Machine

DOUBLE HEAD TUBE/BAR CHAMFERING MACHINE(STANDARD MATERIAL TYPE)

LYM Pipe/Bar chamfering machine is suitable for iron, copper, aluminum and other pipe parts inside, outside corner chamfering and end face processing a quick completion;

The machine typically has two chamfering heads that work simultaneously to perform the chamfering operation on both ends of the workpiece.

• The machine can complete chamfering and shaving at one time for the inner and outer angles of the end face of the pipe and rod, which is fast and accurate.
• Suitable for tube/bar material,also can customized with automatically feeding and loading device

The chamfering machine with high precision that specializes in mold manufacturing, hardware machinery, machine tool manufacturing, hydraulic parts, valve manufacturing, textile machinery chamfering, milling, planing and other processing methods.

• The double head chamfering machine with automatic feeding, automatic clamping, automatic advance and retreat knife, fast speed, large output, high efficiency, easy to operate, easy to learn and easy to understand;
• The feeding speed of the main shaft can be adjusted, with the functions of fast feeding and working.
• For different sizes of the workpiece chamfering, only need to change the clip and make a simple tool holder adjustment can be completed;

• The angle of the chamfer can be adjusted according to the requirements of the application.



  The double heads chamfering machine typically operates by clamping the workpiece between the two chamfering heads and rotating it while the cutting tools remove material from the edges.

Description

Cutter head of double head chamfering Machine(Suitable for pipe parts inside, outside corner chamfering and end face processing)

​

Automatic Feeding Device

Splash Protection Cover

Operation Interface

LYM Tube/Bar chamfering machine is widely used in numerous chamfering applications and industries.

Part of the sample tube

LYM Tube/Bar chamfering machine is widely used in numerous chamfering applications and industries.

PIPE/BAR CHAMFERING MACHINE MAIN TECHNICAL SPECIFICATION (DOUBLE HEAD STANDARD TYPE)

LYM can customize your satisfactory products according to customer's requirements.
