DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine
DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine

Large Image :  DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LYM-Liye Machinery
Certification: CE,ISO,BV,TUV,SGS
Model Number: DJ52
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1,600.00/sets 1-1 sets
Packaging Details: Plywood box for DJ52 Single head round tube/round rod chamfering machine.It depends on requirement.
Supply Ability: 100 Set/Sets per Month DJ52 Single head round tube/round rod chamfering machine
Contact Now

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Warranty: 1 Year Key Selling Points: Easy To Operate
Weight (KG): 110 Applicable Industries: Metal Pipe Machining Enterprise
Showroom Location: None After-sales Service Provided: Engineers Available To Service Machinery Overseas
Product Name: DJ52 Single Head Round Tube/round Rod Chamfering Machine Special Accessories: Different Sizes Of Fixtures
Main Engine Of Machine Motor: 0.75*4P Air Pressure(Mpa): 0.6-0.9Mpa
Size: 550*480*880 Mm Feature: Semi-automatic
Speed: Adjustable OEM & ODM: Available
Port: Shanghai
Highlight:

0.9mpa tube end chamfering mills

,

0.6mpa tube end chamfering mills

,

round rod chamfering machine

DJ52 Single head round tube/round rod chamfering machine



Single head pneumatic pipe chamfering machines are industrial tools designed to chamfer the ends of pipes quickly and efficiently.

The chamfering head is typically equipped with multiple cutting edges that are used to cut through the pipe material, creating a smooth, beveled edge that is free from burrs and other imperfections.



Pipe bar end chamfering machine  also popular in small workshops and job shops due to their compact size and ease of use.

Product Description

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 0

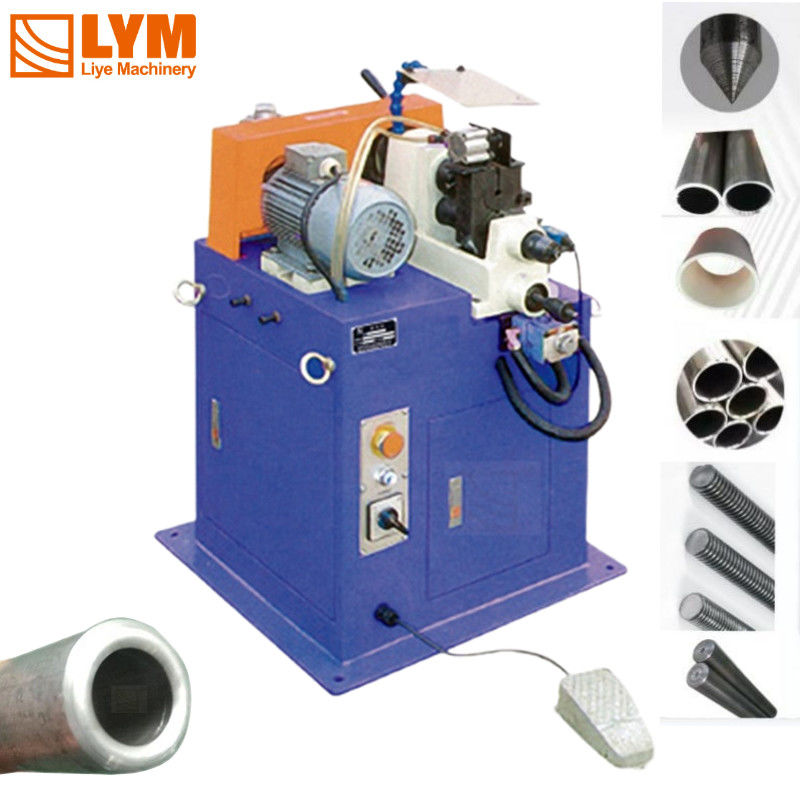

DJ52 Single head round tube/round rod chamfering machine



DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 1

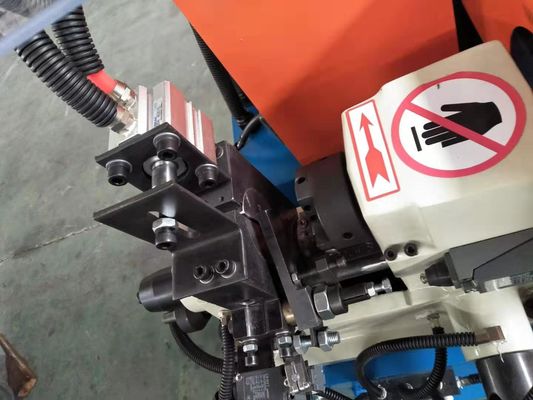

Detail:



DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 2



Fittings of chamfering machine:



DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 3



Sample:



DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 4



Specification:

Specification DJ52
Maximum chamfering ability Φ52
Main engine of machine motor 0.75*4P
Air pressure (Mpa) 0.6-0.9Mpa
Measurement size of machine (L×W×H)mm 550*480*880
Weight of machine(KG) 110



Feature:

Single-end chamfering machine

Semi-automatic precise chamfering machine, manual feeding, automatic clamping and automatic driving and reversing machine

Features

1. Clamp mould and cutter head and carefully designed to ensure the center line of processed object and cutter head will not be changed. The processing of outer angle at tube end, inner angle and tube end can be finished uniformly in one time.

2. The speed can be changed by changing the belt pulley to adapt to different metal material and ensure the longest service life of cutter.

3. Feeding speed at two sections can save time and the slow speed can be easily adjusted to ensure perfect processing.

Similar Product

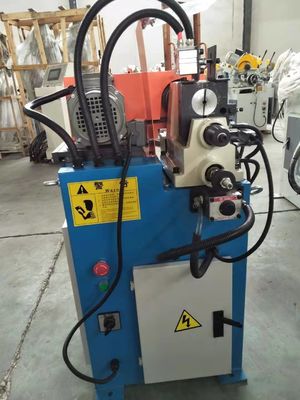

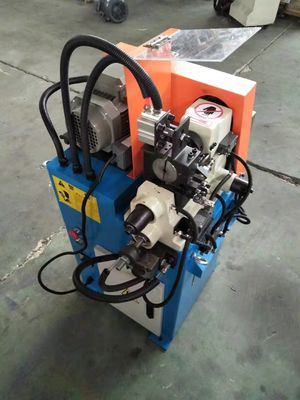

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 5



DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 6

Company Information

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 7

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 8DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 9

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 10



Parts brand

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 11

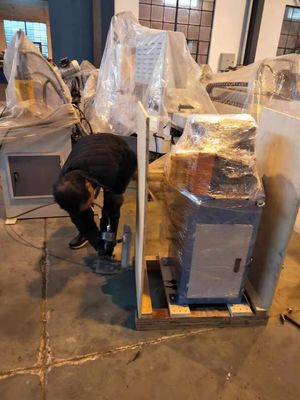

PackingShipping

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 12

FAQ

DJ52 Single Head Tube End Chamfering Mills Round Tube/Round Rod Chamfering Machine 13

 If you are interested in our products Click here to send us a message
