0.8-1.5S/ Metal Pipe Multi Hole Tube Hole Punching Machine

HYDRAULIC  CYLINDER AND SERVO FEEDING AND ROTATION TUBE HOLE PUNCHING MACHINE

Metal pipe multi hole tube punching processing machine

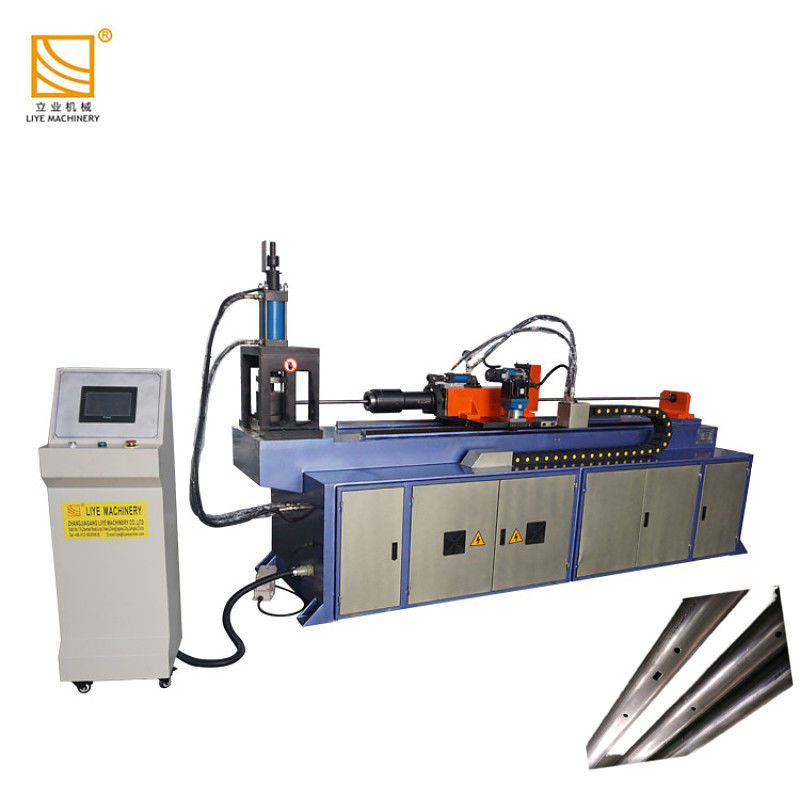

CNC-1 High Accuracy Automatic Pipe Hole Punching Machine Press metal Hole Piercing Machine

• Touch Screen settings, CNC control system, precise servo motor positioning, module storage memory function.
• Structure:Steel plate welded structure,Hydraulic cylinder system
• Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error.

Automatic metal pipe punching machine is a kind of professional metal processing equipment, can be used in metal pipe multi-hole punching processing, its main product description, function introduction, characteristics and advantages are as follows:

1. Product Description: Automatic metal pipe punching machine is mainly composed of frame, workbench, control system and processing head. The machine adopts digital control technology, can accurately carry out multi-hole punching on the surface of the metal pipe.

2. Function description: The machine can be automatic punching according to user needs, punching diameter, hole distance, hole number can be set according to the processing needs. At the same time, the machine has high efficiency, high precision processing ability, can meet the processing requirements of various metal pipes.

3 Features: Automatic metal pipe punching machine has the following characteristics:

· High degree of automation, capable of fully automated operation, greatly improving production efficiency.

· High machining precision, punching diameter, hole distance can be adjusted according to the demand, high precision, good repeatability.

· Strong machinability, suitable for all kinds of metal pipe materials, such as steel pipe, aluminum pipe, copper pipe, etc.

· Simple operation, users only need to set the punching parameters, can easily complete the punching processing task.

Pipe feeding+Pipe rotation mode:Servo motor+reducer​

Description

Mitsubishi servo system

·Schneider Electric

Adjustable drive system

Punch Needle

By using our Liye company’s high-precision automatic multi-size hole pipe punching machine, we can punch out a variety of hole shapes at one time. The equipment uses the Japanese Mitsubishi servo system to control the movement and rotation of the pipe forwards and backwards, to achieve high-precision multi-size hole’s isometric ,unequal space, rotary punching. The quality stability of mass production is very high, the production efficiency is 5-6 times higher than that of the traditional process, and the safety is also greatly improved.

Skilled workers can change the mould within 10 minutes.

Punching Category:

1. .single hole punching;
2. Multi hole punching;
3. Isometric hole punching;
4. none- Isometric hole punching;
5. rotary punching.

• Hydraulic and Servo System.
• Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
• When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.
• The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.
