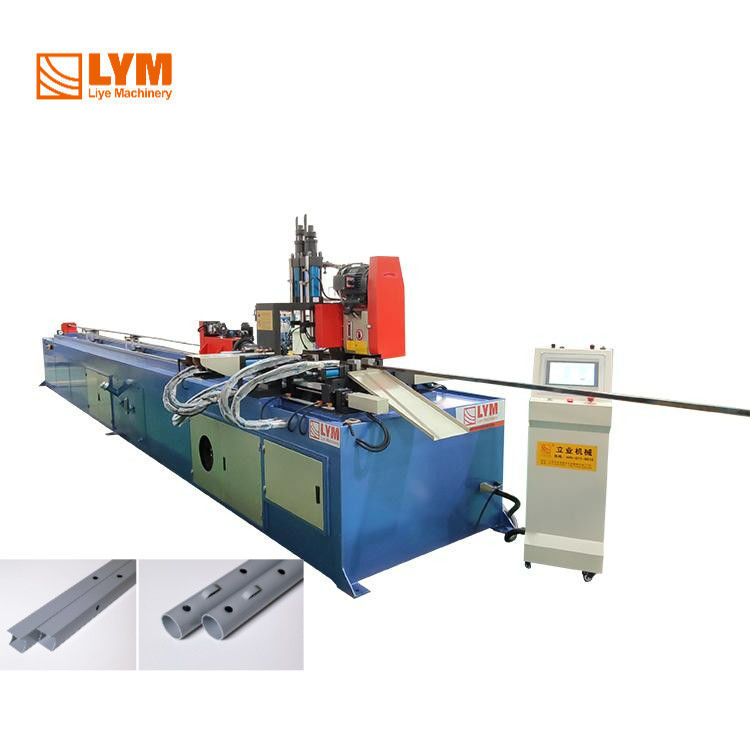

CNC Pipe Hole Punching Machine Busbar Arc Notching Cutting Tailing Pulling

Hole Punching + Arc Notching + Cutting + Tailing Pulling

All-in-one integrated machine

• Processing pipes: metal round pipe, rectangular and square pipe (Length up to 6.5m )

• Processing Method: integrated molds quick change + program setting

• Function: Tube Hole Punching + Arc Notching + Cutting +Tailling  Pulling

• Design Advantage: The pipe wall punching can realize three-dimensional depression or protrusion, which solves the disadvantage that the laser pipe cutting machine can only process the pipe plane.

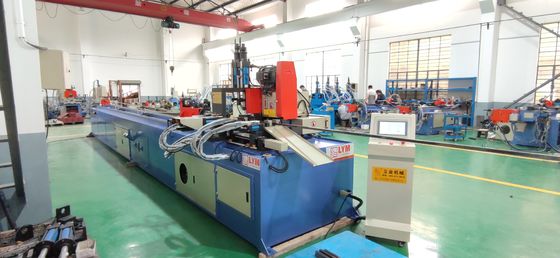

Detail:

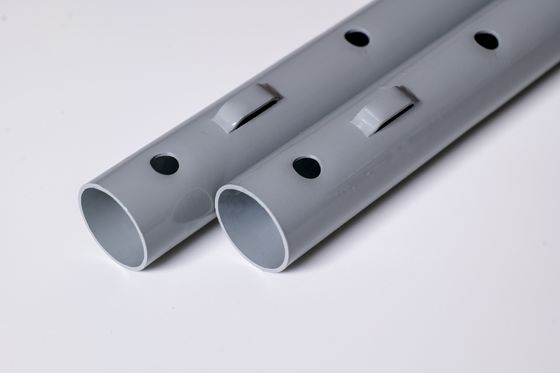

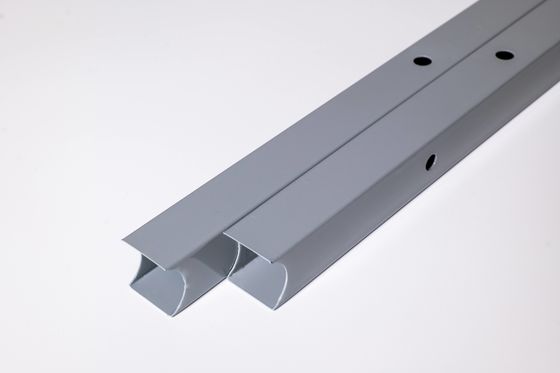

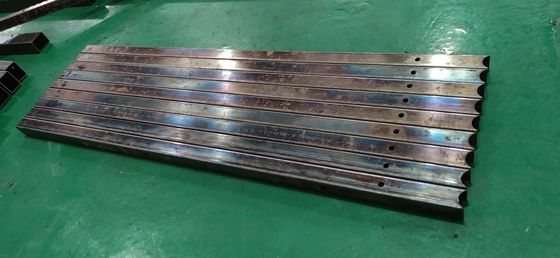

Sample:

After two years of R&D, production and optimization, the stability of the machine has been rigorously tested, and the 5 patents applied for  this equipment have also been authorized and effective.

Details of authorized patent numbers:

1,ZL202120477426.1

2,ZL202120477405.X

3,ZL202120478557.1

4,ZL202120477402.6

5.ZL202120478515.8

Specification:

• Hydraulic working pressure: 12Mpa

• Number of files that can be stored: 20 groups

• Machine dimensions: 9600×1550×2050mm

• Machine weight: 5000kg

• Punching method: hydraulic cylinder

• Arc notching method: hydraulic cylinder

• Pipe grabbing method: hydraulic cylinder

• Cutting head feed method: servo motor + reducer

• Pipe feeding method: servo motor + reducer

• Tube rotation method: servo motor + reducer

• Pull tail method: servo motor

• Operating language: Chinese/English/Russian

• Working noise: ≤60DB

• Power: 380V 50HZ three-phase power

• Air: 0.7-0.8MPa (air)

• Hydraulic oil cooling method: air cooler

• Saw blade cooling method: coolant atomization

Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.

Our  company is an entity factory.The company has a mature team about production, product research and development,  and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
