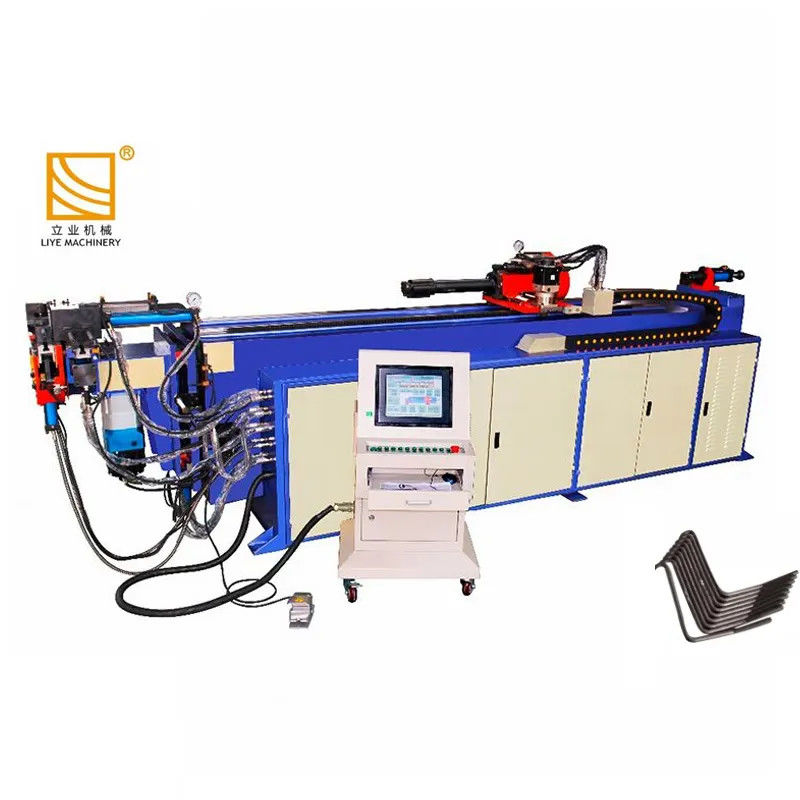

2 Axis CNC Square Tube Bending Machine , 16 - 76mm Automotive Pipe Bender

Product Description:

LYM Machine's DW38CNC tube bender can be integrated into a forming cell. Controlled by a Windows computer, LYM’s RD30 tube bender is extremely fast and accurate, making it suitable for the production test of time. It's CNC pipe bending capacity is rated up to OD 38 mm, and fully automated and cost-effective. With a 2+1 series Features, the DW38CNC tube bender is equipped with three programmable axes: feeding, electric servo; rotation, electric servo; and tube bending, hydraulic. It also features hydraulic pressure die assist for every bending stack, electric servo-controlled feeding and rotation axis accuracy up to +- 0.1 mm and +- 0.1°, a programmable hydraulic bending precision up to +- 0.2°, an automatic springback compensation, and data input capabilities by XYZ or YBC coordinates.

Other features of the LYM DW 38 CNC tube bender include a touch screen system, data storage and editing for multiple files, and an automatic mandrel lubricating system (Optional). All of these features combine to make the DW38CNC tube bender a highly reliable and accurate machine for mass production of tubes with complex bends.

Features:

• Product Name: Pipe Bending Machine
• Dimension: 2000*1000*1800mm
• Weight: 1000kg
• Material: Steel
• Frequency: 50Hz
• Type: Pipe Bender Machine
• Specialty: Tube Processing Machine

Technical Parameters:

Brand Name: LYM

Model Number: DW18CNCX2A-1S/DW25CNCX2A-1S/DW38CNCX1A-1S/DW50CNCX2A-1S/DW63CNCX2A-1S/DW75CNCX2A-1S/DW89CNCX2A-1S/DW100CNCX2A-1S/DW114CNCX2A-1S/DW130CNCX2A-1S/DW168CNCX2A-1S

Type: CNC CONTROL AUTOMATIC (2 ELECTRIC AXIS +1 HYDRAULIC)

Certification: CE/SGS/TUV/ISO

Place of Origin: China

Application: Pipes or solid bars, various materials such as steel, stainless, aluminum and copper

Packaging Details: Packed in stretch film firstly, and then reinforced with plywood for outer packing.

Applications:

LYM DW38CNC2A1S Pipe Bending Machine is a reliable and versatile pipe shaping machine that can be used to make a variety of curved shaped pipes. It is manufactured in CHINA and is certified by CE, ISO, BV, TUV, and SGS. The minimum order quantity for this machine is 1 set and the price is 5000 USD. It will be packaged in a plywood box measuring 2680*900*1410 mm. The estimated delivery time is 15-20 work days. Payment terms include L/C, D/A, D/P, T/T, and Western Union. The supply ability of this machine is 50 sets per month. It is powered by 220V of voltage and has a 1 year warranty. This machine has a bending radius of 1-3D and can bend up to 180°. It also has a power of 3KW. This pipe bending machine is ideal for making pipes of different shapes and sizes, and it can be used for a wide range of applications. It is suitable for any type of industrial pipe bending work, such as automotive, construction, and plumbing. It can be used to make complex bends, spirals, and arcs. This machine is perfect for pipe shaping, pipe bender machine, pipe making machine, and bending machine.

Customization:

Support and Services:

We provide technical support and services for our Pipe Bending Machine. Our services include:

• 24/7 online support
• Live chat support
• Phone support
• On-site installation and maintenance
• Troubleshooting
• Spare parts
• Warranty services

Packing and Shipping:

The Pipe Bending Machine is packaged in a wooden crate, which is then secured with wooden pallets and shrink-wrapped. The crate is then shipped using a reliable shipping company, with tracking and insurance included.
