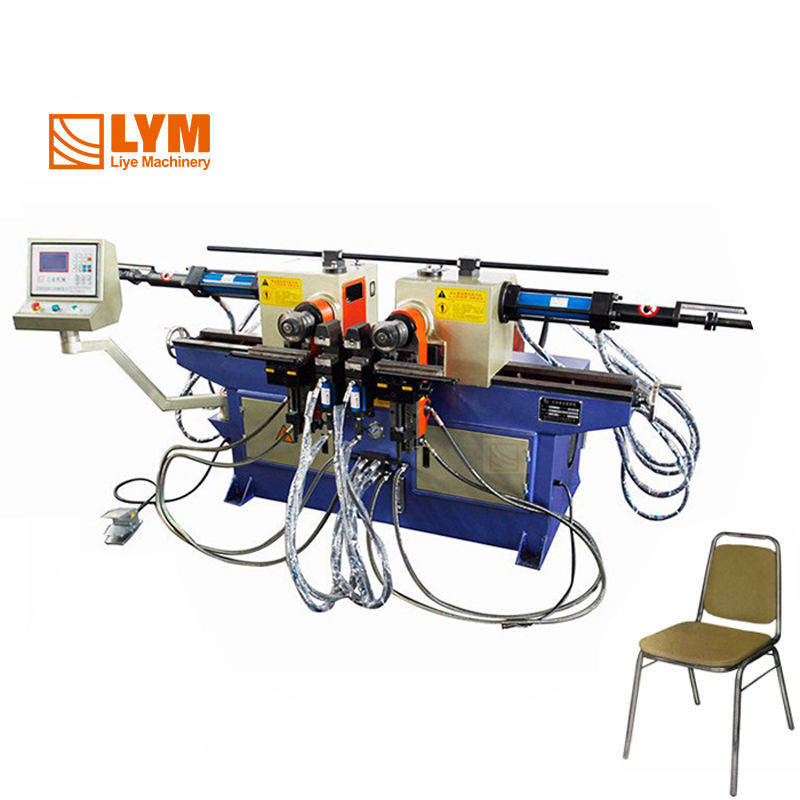

CNC Hydraulic Pipe Bending Machine 2-500mm For Heavy Duty Applications

Product Description:

LYM Machine has an efficient and precise DW38CNC tube bender integrated in a forming cell. This machine is equipped with a standard LYM loader and unloader for a quick and accurate tube moving. The DW38CNC tube bender has two servo-controlled axis and is operated by a Windows computer. The RD30 tube bender is also designed for production and has a great reputation.

The DW38CNC tube bender’s AUTO Pipe Bending Machine comes with 3 programmable axes, such as electric servo feeding, electric servo rotation and hydraulic tube bending. This great machine also provides features such as hydraulic pressure die assist for every bending stack, wiper, clamping and pressure die seats, and touch screen system. Plus, the electric servo-control axis capabilities can help you achieve high precision (+- 0.1 mm and +- 0.1°).

In order to guarantee the reliability, accuracy and stability of the pipe bending performance, the DW38CNC tube bender has a capacity up to OD 38mm and has a NC programmable hydraulic bending precision that can reach up to +- 0.2°. It also has automatic springback compensation and supports data input by XYZ or YBC coordinates. The data storage and editing of multiple files is adjustable, as well as the optional automatic mandrel lubricating system.

Features:

• Product Name: Pipe Bending Machine
• Bending Radius: 1-3D
• Type: Pipe Forming Machine, Pipe Bender Machine, Tube Bending Equipment
• Weight: 1000kg
• Warranty: 1 Year
• Bending Angle: 0-180°

Technical Parameters:

The Brand Name is LYM.

It provides various types of CNC control automatic (2 electric axis +1 hydraulic). It is certified by CE/SGS/TUV/ISO.

It is made in China and is suitable for pipes or solid bars, various materials such as steel, stainless, aluminum and copper.

The package is packed in stretch film firstly and then reinforced with plywood for outer packing.

Applications:

The LYM DW38CNC2A1S Pipe Bending Machine is a tube processing machine, tube forming machine, and tube shaping machine. It is mainly used for the bending of steel pipes. The machine is made of superior steel and has a weight of 1000kg. It is painted in yellow and has a dimension of 2000*1000*1800mm. With its excellent bending radius of 1-3D, it can meet the needs of most bending processes. It is certified by CE, ISO, BV, TUV, and SGS, and its minimum order quantity is 1 set. The price is 5000 USD and the packing is plywood 2680*900*1410mm. The delivery time is 15-20 work days and payment can be made via L/C, D/A, D/P, T/T, or Western Union. The supply ability of the machine is 50 sets per month.

This machine is suitable for a variety of processes such as automotive, aerospace, medical, and furniture production. It is perfect for bending tubes into predetermined shapes and sizes, and can be used to bend tubes with complex shapes. It is also suitable for bending tubes into arcs, circles, or other shapes. The machine is widely used in industries such as automotive, aerospace, medical, furniture, and more. It can be used to bend pipes and tubes into different shapes and sizes, and is an essential tool for many manufacturing processes.

Customization:

• Brand Name: LYM
• Model Number: DW38CNC2A1S
• Place of Origin: CHINA
• Certification: CE,ISO,BV,TUV,SGS
• Minimum Order Quantity: 1 set
• Price: 5000 USD
• Packaging Details: plywood 2680*900*1410 mm
• Delivery Time: 15-20 work days
• Payment Terms: L/C, D/A, D/P, T/T, Western Union
• Supply Ability: 50 Sets per month
• Dimension: 2000*1000*1800mm
• Bending Radius: 1-3D
• Type: Pipe Bending Machine
• Bending Speed: 2-3s/90°
• Warranty: 1 Year

We specialize in customizing Pipe Bender Machines, Tube Bending Machines, Pipe Forming Machines, and Pipe Benders according to the customer's requirements.

Support and Services:

We provide technical support and after-sales service for Pipe Bending Machine. Our service includes but not limited to:

• Installation and commissioning of machines
• Training on operation and maintenance of machines
• Technical support and maintenance services
• Spare parts supply services
