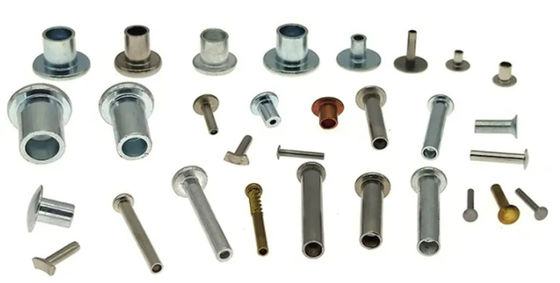

Semi-hollow rivets solid rivets and step rivets Applied to rivets of various shapes
Product Description
The equipment has compact structure, stable performance, convenient and safe operation.

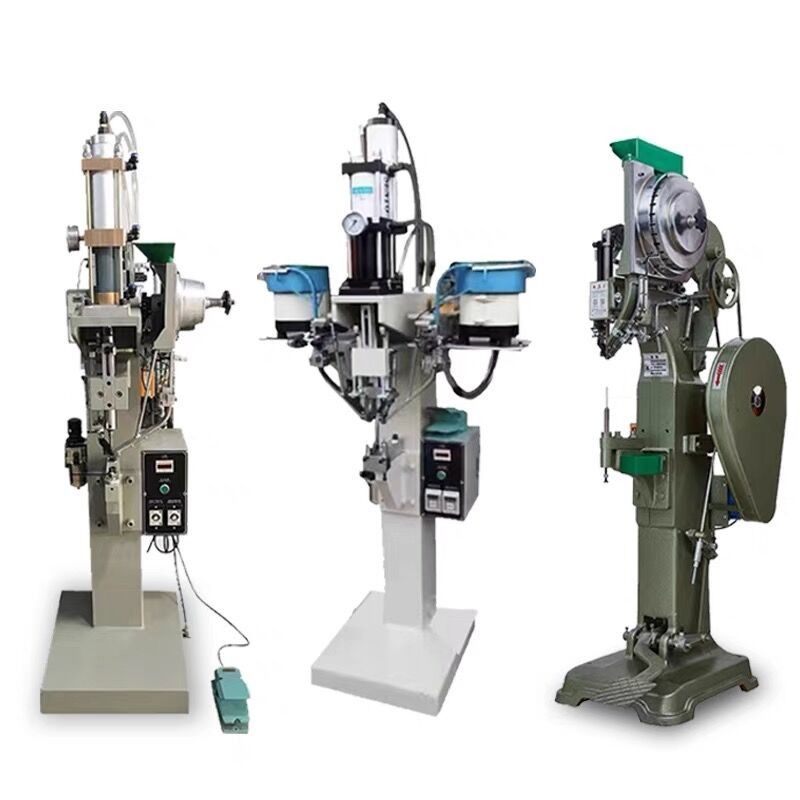

Riveting machine mainly rely on rotation and pressure to complete the assembly, mainly used in the need of rivets (hollow rivets, hollow rivets, solid rivets, etc.) riveting occasions, common pneumatic, hydraulic and electric, single head and double class specifications.
And the common types are mainly automatic rivet machine (mainly for the riveting of semi-hollow rivet machine, can automatically feed, riveting efficiency is high!)
And rotary riveting machine (rotary riveting machine is divided into pneumatic rotary riveting machine and hydraulic riveting machine, mainly used for solid rivets, or large hollow rivets riveting).
The semi-hollow rivets, solid rivets and step rivets made by Zhangjiagang Liye Machinery Co., Ltd. are riveted with this riveting machine.
Riveting machine is riveting machine, riveting machine, corns and other riveting equipment collectively!
Usually people refer to spin riveting machine alone, spin riveting machine according to the power can be divided into: pneumatic spin riveting machine and hydraulic spin riveting machine;
Mainly used in solid rivets or hollow rivets, hollow rivets and other aspects of riveting;
Rotary riveting machine riveting mode: radial riveting and stretch riveting;
Scope of application
Hydraulic riveting machine multifunctional applications for large size workpiece pressing, punching, riveting, assembly, shearing.
And rotary riveting machine (rotary riveting machine is divided into pneumatic rotary riveting machine and hydraulic riveting machine, mainly used for solid rivets, or large hollow rivets riveting).
Product Detail
Service maintenance
1, do not process more than the nominal capacity of the workpiece.
2. Don't work under high pressure for a long time.
3. The extension length of the rivet head should not exceed the specified value.
4, encounter abnormal immediately stop repair, direct troubleshooting.
5, the guide rail of the equipment should be coated with butter once a month, so that it is lubricated and rust proof.
6. The installation and disassembly of the rivet head should be light, especially when removing the rivet head, do not use brute force to pull out, should rotate the rivet head and pull out slowly downward. If the rivet seat of the inserted rivet head is pulled out of the normal position, the position of the rivet head will be obviously deviated after the installation of the rivet head. At this time, the red safety cover should be removed and the rivet seat can be used after being installed in place, otherwise the machine is easy to be damaged.
7, the use of rivet head in the processing of some materials will appear slight bonding phenomenon, in order to ensure the quality of riveting, should be cleaned regularly on the rivet head, prevent metal bonding thickening. When cleaning, the riveting head is fixed on the chuck of the lathe, and then polished with sandpaper.
8. Daily maintenance of the equipment shall be carried out every two weeks. The main maintenance items are as follows.
A. Check whether there is enough lubricating oil in the pneumatic triplet oil cup, otherwise the oil cup should be filled.
B. Check whether each steam pipe and joint are firmly connected and whether there is gas leakage.
C. Check whether there is bonding in the cavity of the rivet head, and clean it up if there is.
D. Grease the spherical pair.
9. The equipment shall be shut down and repaired in batches every 6 months, mainly for the following items. If problems are found, they shall be repaired in time.
A. Check whether there is air leakage in the upper and lower parts of the cylinder, otherwise the sealing ring should be replaced.
B. Check whether each steam pipe and joint are firmly connected and whether there is gas leakage.
C. Check whether the extension length of the rivet head exceeds the standard, otherwise it should be replaced.
D. Check whether the rivet head swings normally, or stop the machine for maintenance. If it is a spherical pair problem, the spherical pair should be replaced or repaired in time.
E. Check whether the noise of spindle rotation and riveting quality are abnormal. If so, it should be checked. If the problem is bearing wear or damage, the bearing should be replaced immediately.
F. Grease the spherical pair.
G, guide rail and other parts should be coated with butter, so that the lubrication and rust prevention.
10. Special personnel should be arranged to take charge of maintenance regularly. In case of problems that cannot be solved, contact the manufacturer in time.
Sample
Features:
1.Suitable for riveting semi-circular head and semi-hollow riveting.
2.Automatic feeding device, continuous riveting, high work efficiency
3.The operator does not need to touch the rivets during operation,and the safety is greatly improved.
4.The clamps and punches of high-performance materials have high riveting strength without damaging the original rivets.The plating and flanging are beautiful and neat.
5.The rivet head can be riveted by changing the rivet head.Multiple units can be moved at the same time.It is used for the pipeline operation of pipe, wood, plastic, leather and other products, which greatly improves Productivity.
Company Information
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
FAQ
Q1 What a Liye machinery main product is?
The main products include 9 series and over 100 models, i.e. pipe machining line pipe cutter pipe bender
pipe end forming machine, chamfering machine, gear grinding machine, niveting machine, arc machine
and bending press.
Q2 Why can we trust Founding mechanical technology?
1.All of our products have passed CE, TUV, ISO quality cerification
2.0ur products have been exported so far been more than 80 countries
3.This site is written by the Department of Mechanical Technology Founding how to choose the type of
article bender http:/www zjgly.net/en/xxzn.html)
Q3 When did you set up?
We specialize in the production of pipe processing machinery has reached 16 years, starting in
2008 to developthe intemational market.
Q4 Where is your factory?
Zhangiagang City, Jiangsu Province, from Shanghai airport only two hours
Q5 Where is your ADVANTAGE?
1. In good faith-based, professiona skills,excellent quality
2 We have been committed to the development of new products, equipment canbe customized according to
needs
3. Strict management system and perfect after-sales service
