Product Details:
|
Material / Metal Processed: | Stainless Steel,mild Steel Copper,aluminum Pipe; | Condition: | New |
---|---|---|---|
Machine Type: | Multi-function Pipe Bender | Max. Bending Angle (Deg): | 360 |
Bending Precision (Deg): | ±1 | Automation: | Semi-automatic |
Extra Services: | Support Customized | Year: | 1 |
Power (kW): | 5.5 | Weight (KG): | 800 |
Warranty: | 1 Year | Applicable Industries: | Manufacturing Plant, Metal Pipe Machining Enterprise |
Key Selling Points: | Easy To Operate | Showroom Location: | None |
Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
Core Components: | Bearing, Engine, Gear, Gearbox, Motor, PLC, Pressure Vessel, Pump | Product Name: | GY60 Mechanical 3 Roller Steel Tube Coiling Machine In Zhangjiagang |
Color: | Customized | Weight: | 800KG |
Bending Speed: | 80mm/s | Power Supply: | 380V 50HZ |
Motor Power: | 5.5kw | Material: | Steel, Stainless Steel, Copper, Aluminum, Metal |
Dimension Of Machine: | 800*1200*1700mm | Min.bending Radius: | 5D |
OEM&ODM: | Available | Port: | Shanghai |
Highlight: | 5.5kw aluminium section bending machine,80mm/s aluminium section bending machine,5d angle bending machine |

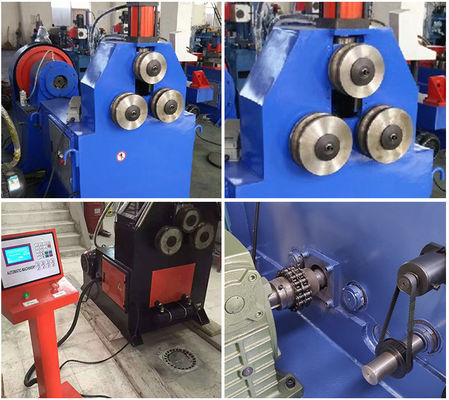

GY60 Manufacture angle iron bending machine/stainless steel pipe bending machine
1. Before starting the rolling bending machine, it is necessary to carefully test whether the motor, switch, line and grounding are abnormal, and check that the operating parts and control keys of the equipment are stuck in the correct position. Detection of the upper and lower two sides of the mold overlap degree; Test whether the positioning devices meet the requirements of processing.
2. The rolling bending machine will run empty for 1-2 minutes after starting up, and the upper roller shaft will run for 2-3 times with full travel. If there is abnormal sound or fault, it should be shut down and stop working.
3. One person should be responsible for the command during operation, so that the control technician and the feeding and pressing technician can cooperate with each other, and the cold-bending signal can be sent out in the position of the technician.
4. When rolling and bending machine is in operation, no one is allowed to stand behind the machine.
5. It is strictly prohibited to press and fold materials directly at one end.
Model | The product name | Max bending capecity(iron) | Min bending radius | Bending speed |
GY38 | Electric pipe bender | Φ38×1.5MM | 200MM | 80MM/S |
GY40 | Electric pipe bender | Φ40×1.5MM | 280MM | 80MM/S |
GY50 | Electric pipe bender | Φ50×1.5MM | 350MM | 80MM/S |
GY60 | Electric pipe bender | Φ60×1.8MM | 420MM | 80MM/S |
GY80 | Electric pipe bender | Φ80×2.0MM | 550MM | 80MM/S |
GY120 | Electric pipe bender | Φ120×5MM | 800MM | 80MM/S |
Features:
1. It applies full mechanical drive, with compact structure and high reliability.
2. Driven by three wheels, it will not slip easily and the thin-wall can be bent.
3. The wheels at both sides are distributed asymmetrically, which shortens the linear segment.
4. Parts can be fed at both sides of the wheel.

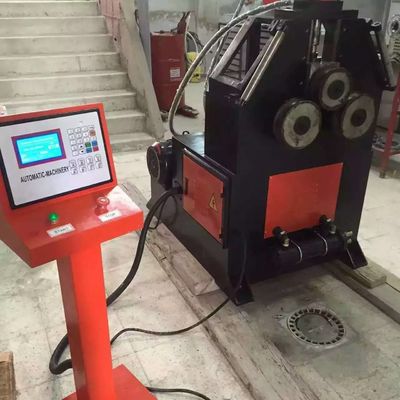

5. The double foot switches are provided with emergency stop function, facilitating to operation.
6. It has balanced drive. Adjusting the pressing can obtain circular arc or spiral shape with different curvature.

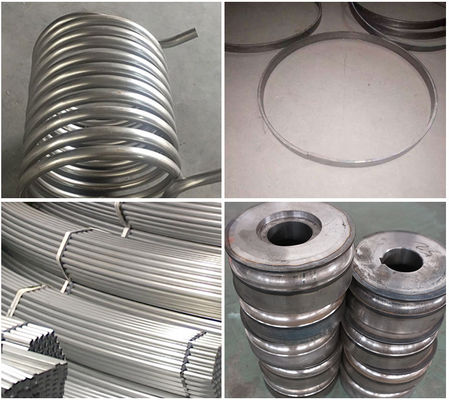

7. Changing the groove shape of mould can process different metal profiles, such as angle steel, flat steel, round steel and other shaped cross section steel.
8. It can bend profile with large radius, which prevents the disadvantage of especially big bending mould. It is a necessary supplement to single-end and double-end series tube bender.
9. The product can have medium and large volume production and can operate fast with high efficiency.
Standard accessories:
One group of mould One set of common tool
Specification:

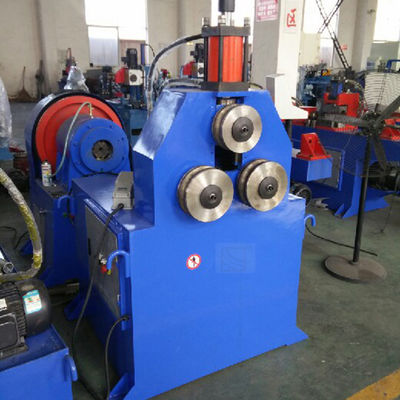

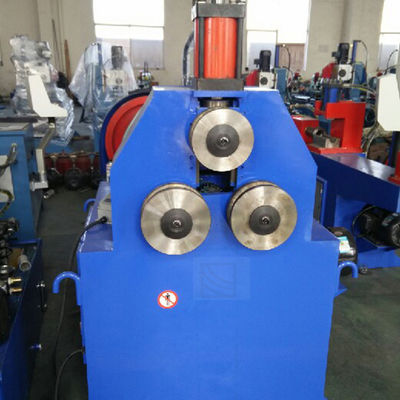

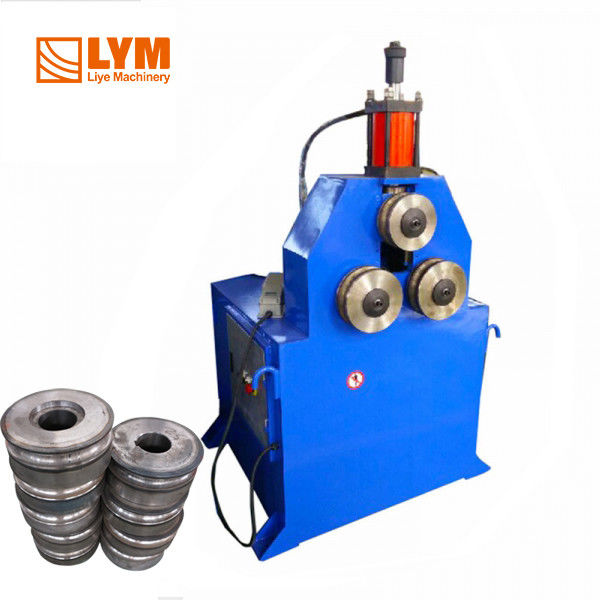

GY60 | 3 Rolls tube rolling machine |
Specification | |
Max. pipe diameter (iron pipe) mm | Φ60×2 |
Min.bending radius | 5D (5 times greater than the diameter of the tube ) |
Bending speed | 80mm/s |
Motor power | 5.5kw |
Power supply | 380V 50HZ(Customizable) |
Machine dimension | 800*1200*1700mm |
Machine weight | 800KG |
Note: Can be customized according to customer requirements |
Q1 What a Liye machinery main product is?
The main products include 9 series and over 100 models, i.e. pipe machining line pipe cutter pipe bender
pipe end forming machine, chamfering machine, gear grinding machine, niveting machine, arc machine
and bending press.
Q2 Why can we trust Founding mechanical technology?
1.All of our products have passed CE, TUV, ISO quality cerification
2.0ur products have been exported so far been more than 80 countries
3.This site is written by the Department of Mechanical Technology Founding how to choose the type of
article bender http:/www zjgly.net/en/xxzn.html)
Q3 When did you set up?
We specialize in the production of pipe processing machinery has reached 16 years, starting in
2008 to developthe intemational market.
Q4 Where is your factory?
Zhangjiagang City, Jiangsu Province, from Shanghai airport only two hours
Q5 Where is your ADVANTAGE?
1. In good faith-based, professiona skills,excellent quality
2 We have been committed to the development of new products, equipment canbe customized according to
needs
3. Strict management system and perfect after-sales service
