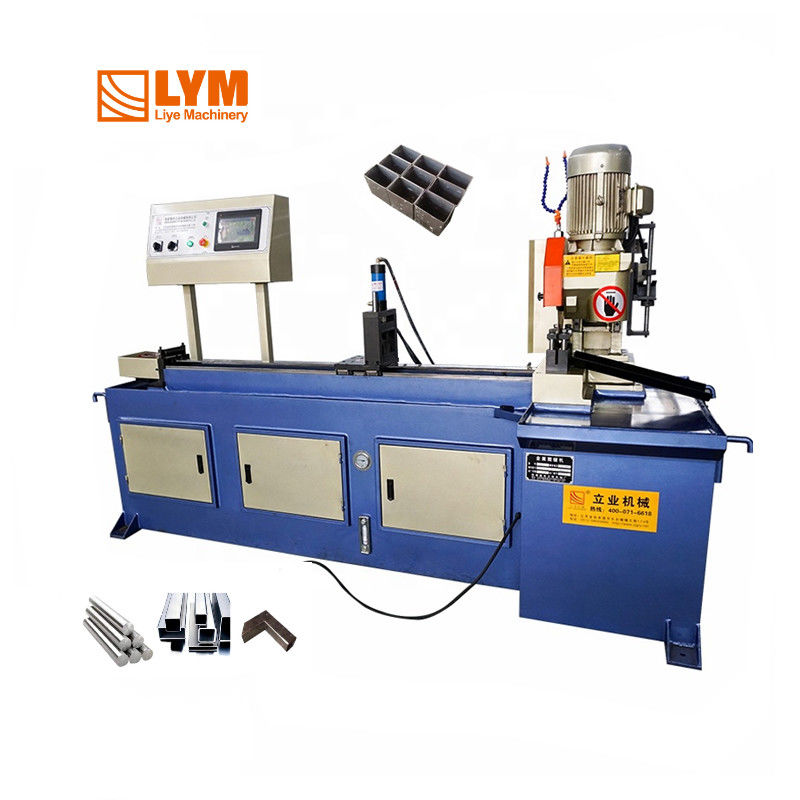

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree
Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree

Large Image :  Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree

Product Details:
Place of Origin: CHINA
Brand Name: LYM
Certification: CE,ISO,BV,TUV,SGS
Model Number: YJ425CNC-SS-UD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 11,000-20,000 USD
Packaging Details: plywood 2450*1310*2180 mm
Delivery Time: 20-35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 Sets per month
Contact Now

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree

Description
Main Motor: 3.3/4.0 Kw Blade Speed: 50/100 RPM
Clamp Method: Up And Down Cooling Pump Power: 40 W
Servo Motor Power: 1 Kw Saw Blade Size: HSS Φ315-Φ350mm
Feeding Length: 5-700mm Multiple Feeding Can Be Realized Hydraulic Pump Motor: 2.2 Kw
Max Oil Working Pressure: 70 Kg Weight: 1200KG
Measurement: 2350*1080*2050 Mm Certificate: CE,ISO,BV,TUV,SGS
Saw Blade Revolving Speed: 35/70RPM 60/120RPM Maximum Once Feeding Material Length: 700mm (can Be Customized)
Highlight:

700mm aluminum gas pipe cutter machine

,

70rpm square tube cutting machine

,

35rpm square tube cutting machine

AUTOMATIC CNC HIGH CUTTING PRECISION TUBE CUTTING MACHINE(SERVO FEEDING)

SERVO FEEDING AND CUTTING AUTOMATIC CNC TUBE COLD CUTTING MACHINE FOR METAL PIPE CUTTING

Automatic operation Circular Sawing Machine to cut metal tube,profiles or solid bars

LYM CNC tube cutting machine can realize servo feeding,automatic cutting head rotation,and material tailing cutting function



Pipe and bar Tailing Cutting

  • LYM pipe cutting machine can set tailing cutting function,set the shortest crop lengths, the YJ-T bring maximum material savings and more production

Performance

  • Vertical Slide for maximum cutting power and rigidity
  • Capacity up to 120mm in Tube and 70 mm in Solid Bars
  • Flexible Gripper Feeding make the feeding precision
  • Patented automatic angle rotation cutting for tubes and bars

Software

  • Intuitive and User-Friendly Interface with Touch Screen system
  • Ability to program multiple cutting lengths per pipes and bars
  • Large file storage system
  • Safety Covers (optional) for maximum operator protection and comfort
  • Ability to use Flat and Bundle clamps for multiple tubes cutting

Description

Brand Name: LYM
Model Number: YJ-325CNC-S/YJ-355CNC-S/YJ-425CNC-S
Type AUTOMATIC SERVO FEEDING+CUTTING+ROTATION(OPTIONAL)+TAILING CUTTING(OPTIONAL)
Certification: CE/SGS/TUV/ISO
Place of Origin: China
Application Pipes,Profiles,or solid bars,various materials such as steel, stainless
Packaging Details Packed in stretch film firstly,and then reinforced with plywood for outer packing

Capacity up to 120mm for Tube and 70mm in Solid Bars

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree 0

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree 1Patented automatic machine head rotation cutting for pipes and bars

  •    Vertical sliding saw head ensures stable and precise cutting
  •    Clamping vise provides secure material holding

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree 2

      Software

  • Intuitive and User Friendly Interface with Touch Screen system
  • Ability to program multiple cutting lengths per bar
  • Large file storage
  • Ability to use Flat and Bundle clamps for multiple tubes cutting
  • With tailing cutting function,set the shortest crop lengths,save materialAutomatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree 3

   Digital Display of Feeding Length and Programmable Counter. Control Panel with Movements’ Display for Easy troubleshooting

  • Digital counter for automatic operation (Cutting length / Quantity set up / Counter)Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree 4

METAL CIRCULAR SAWING MACHINE CUTTING MILD STEEL CAPACITY ( AUTOMATIC SERVO FEEDING SERIES)

Model

⚪ Round Tube
(mm)

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree 5Square Tube
(mm)

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree 6Rectangular
(mm)

Automatic Aluminium Gas Pipe Cutter Machine Hollow Square Tube Cutting Machine 45 Degree 7Solid bar
(mm)

Video

(Click Here)
YJ325CNC-S-V(clamp up and down) 70 70X70 70X90 45
YJ325CNC-S-H(clamp left and right) 100 90X90 90X90 45
YJ355CNC-S-V(clamp up and down) 80 80X80 80X100 50
YJ355CNC-S-H(clamp left and right) 120 100X100 100X100 50
YJ425CNC-S-V(clamp up and down) 90 90X90 80X100 70
YJ425CNC-S-H(clamp left and right) 120 100X100 100X100 70
