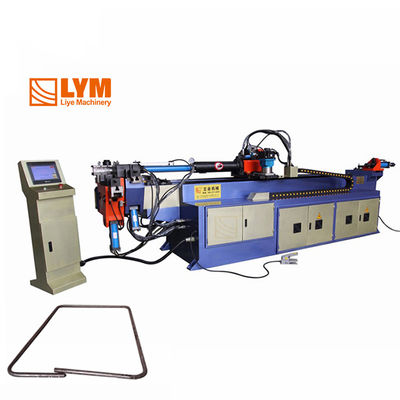

1.5 Inch Pipe Bending Machine CNC Automatic 2 Servo Motors 2 Electric Axis Tube Bender

1.5 Inch Tube CNC Automatic 2 servo motors 2 Electric Axis Pipe Bending Machine

Description
LYM Machine’s DW38CNC tube bender can be integrated into a forming cell. A standard LYM loader and unloader moves the tube thru the LYM mandrel tube bender and places it into an end forming machine. In addition to the compact head design, the 2 axis servo controlled tube bender is fast and accurate. Controlled by a Windows computer, LYM’s RD30 tube bender has a history of standing the production test of time.

CNC pipe bending machines with a capacity up to OD 38 mm.

• Fully Automatic and Cost-Effective.

• This Pipe Bending line equipped with 3 programmable axes:

• Feeding – Electric Servo

• Rotation – Electric Servo

• Tube Bending – Hydraulic

 AUTO Pipe Bending Machine(2+1 series) Features :
Hydraulic pressure die assist for every bending stack.
Equipped with Wiper, clamping, and pressure die seats.
Touch screen system.
Electric servo-controlled feeding and rotation axis to ensure high precision (+- 0.1 mm and +- 0.1°) and reliability.
NC programmable hydraulic bending precision up to +- 0.2°
Automatic springback compensation.
Data input by XYZ or YBC coordinates.
Data storage and editing for multiple files.
Automatic mandrel lubricating system (Optional).

DW38CNC2A1S 2 Axis with  Hydraulic Bending, Capacity up to OD 38mm


AUTO series :LYM Controls, Software and Operation Interface

• Touch screen system
• Data input by XYZ or YBC coordinates
• Data storage and editing for multiple files


PIPE BENDER MAIN TECHNICAL SPECIFICATION (CNC CONTOL / 2 ELECTRIC AXIS +1 HYDRAULIC)
